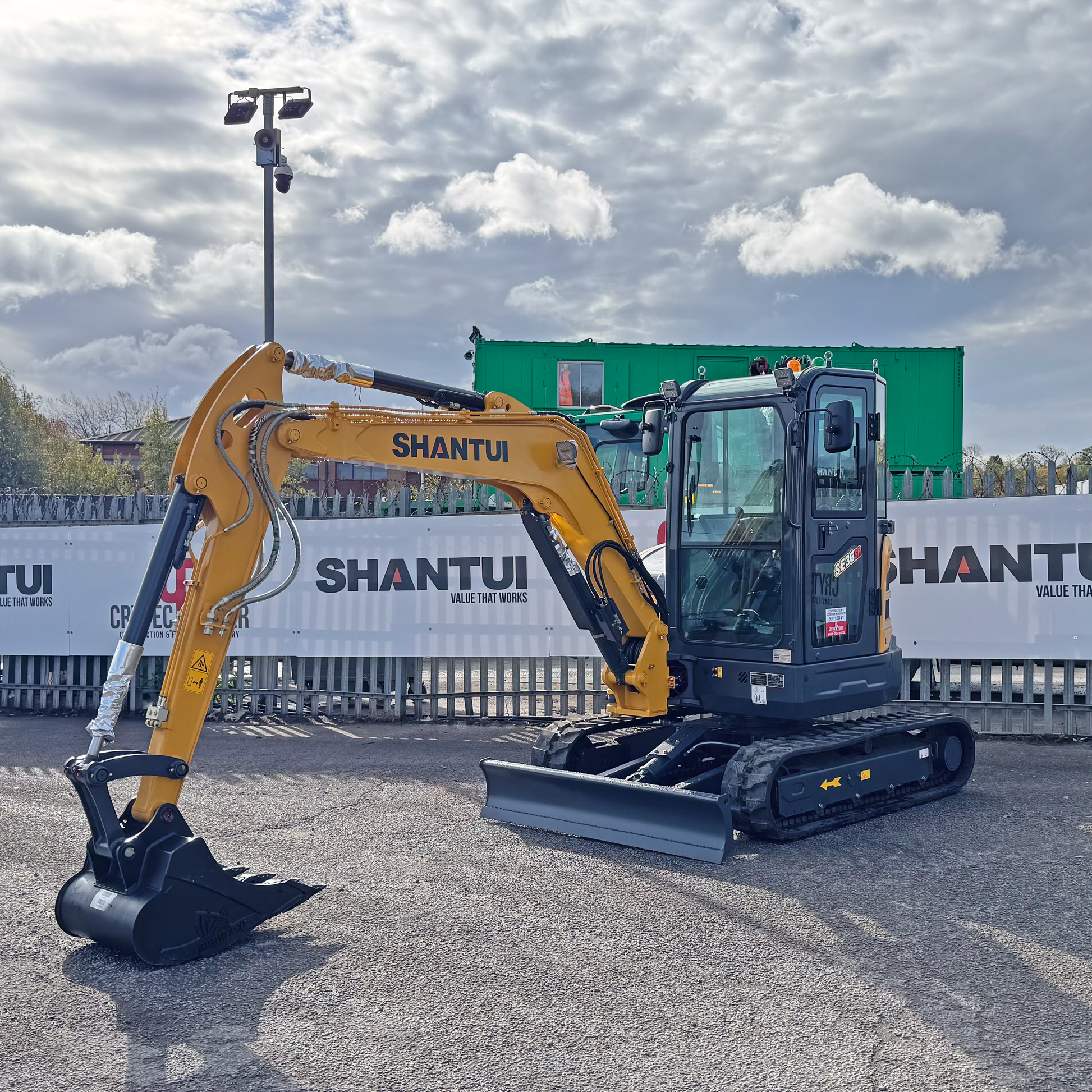

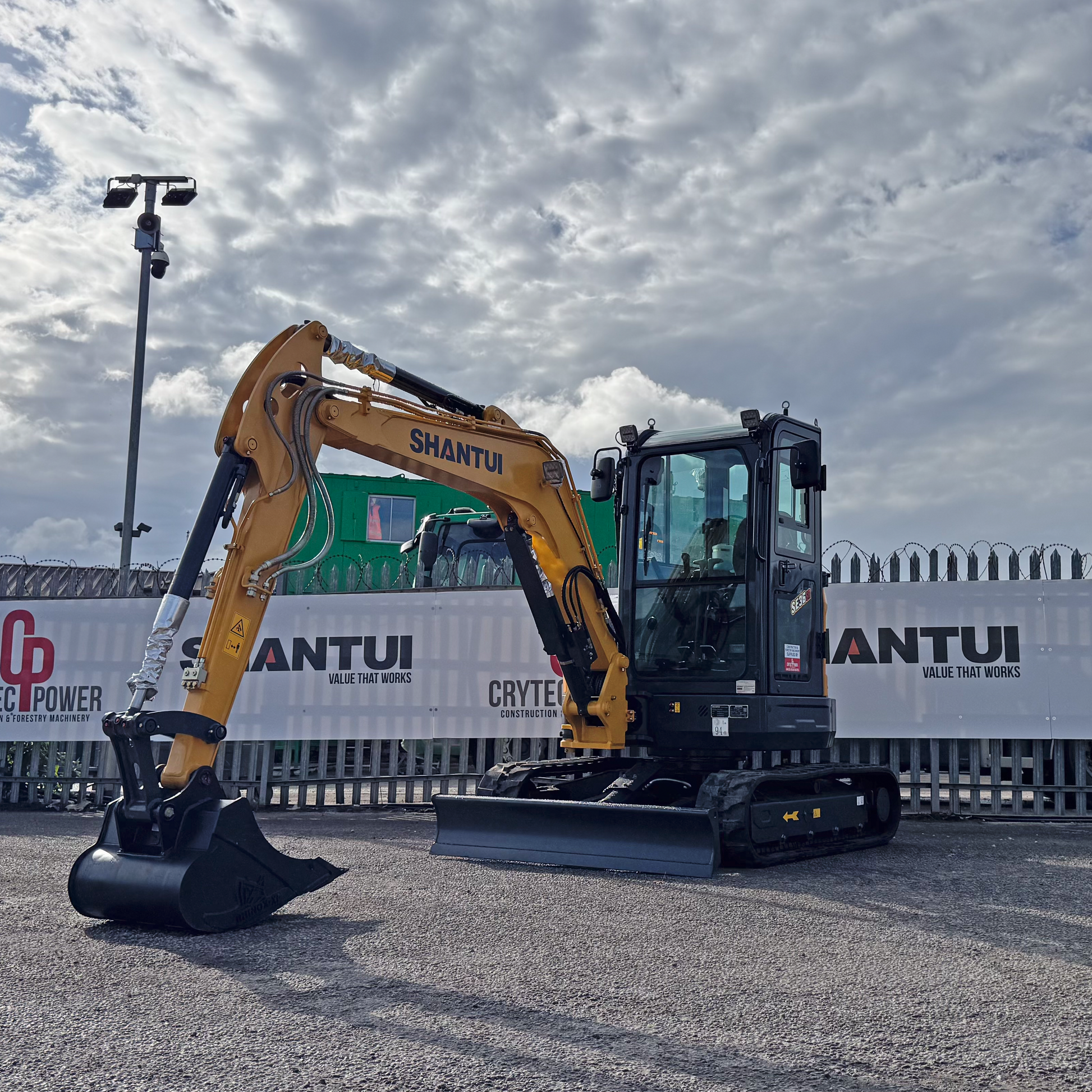

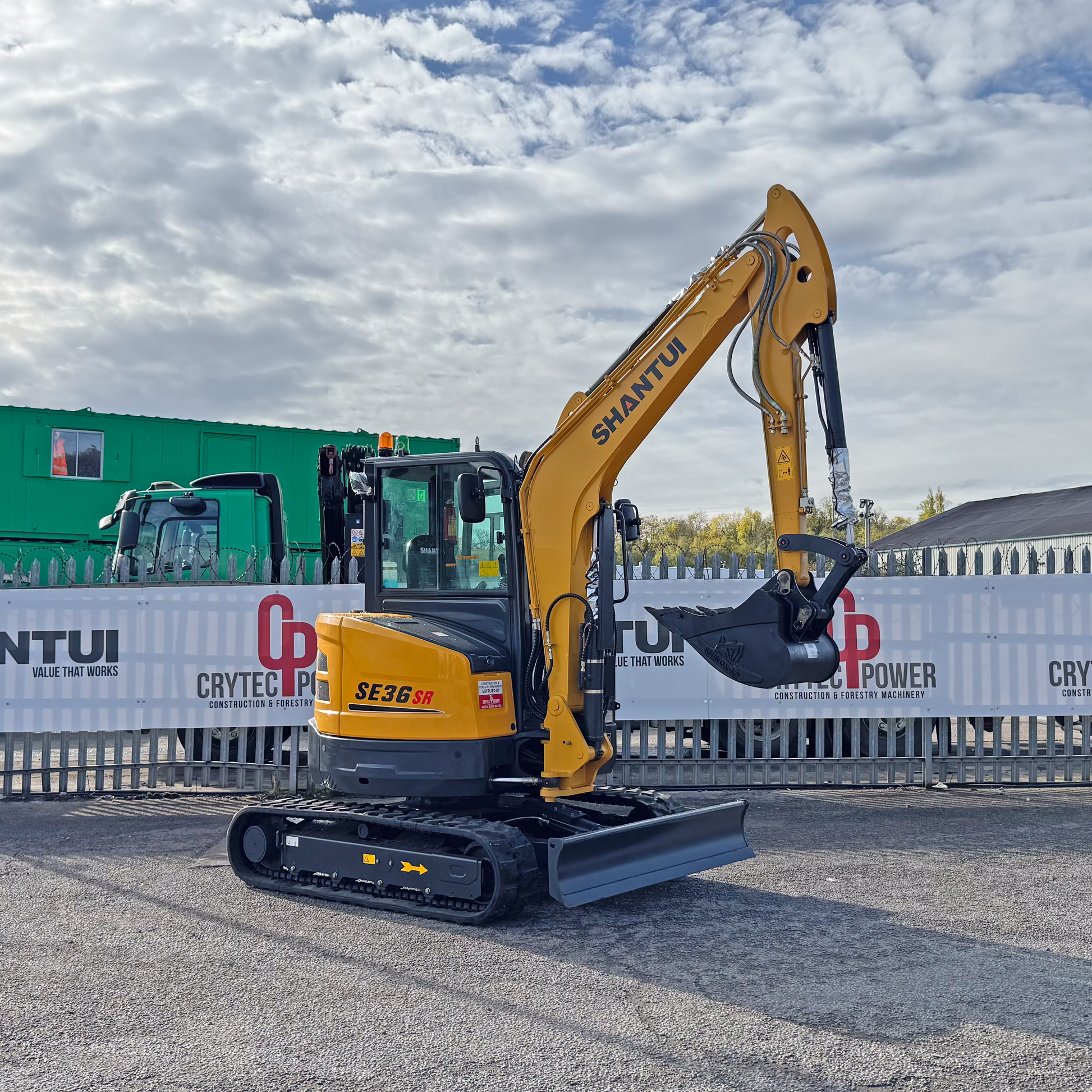

Shantui SE36SR Mini Excavator | Kubota Engine Euro Stage 5 | 3800kg | 3 Cylinder

Full brochure here

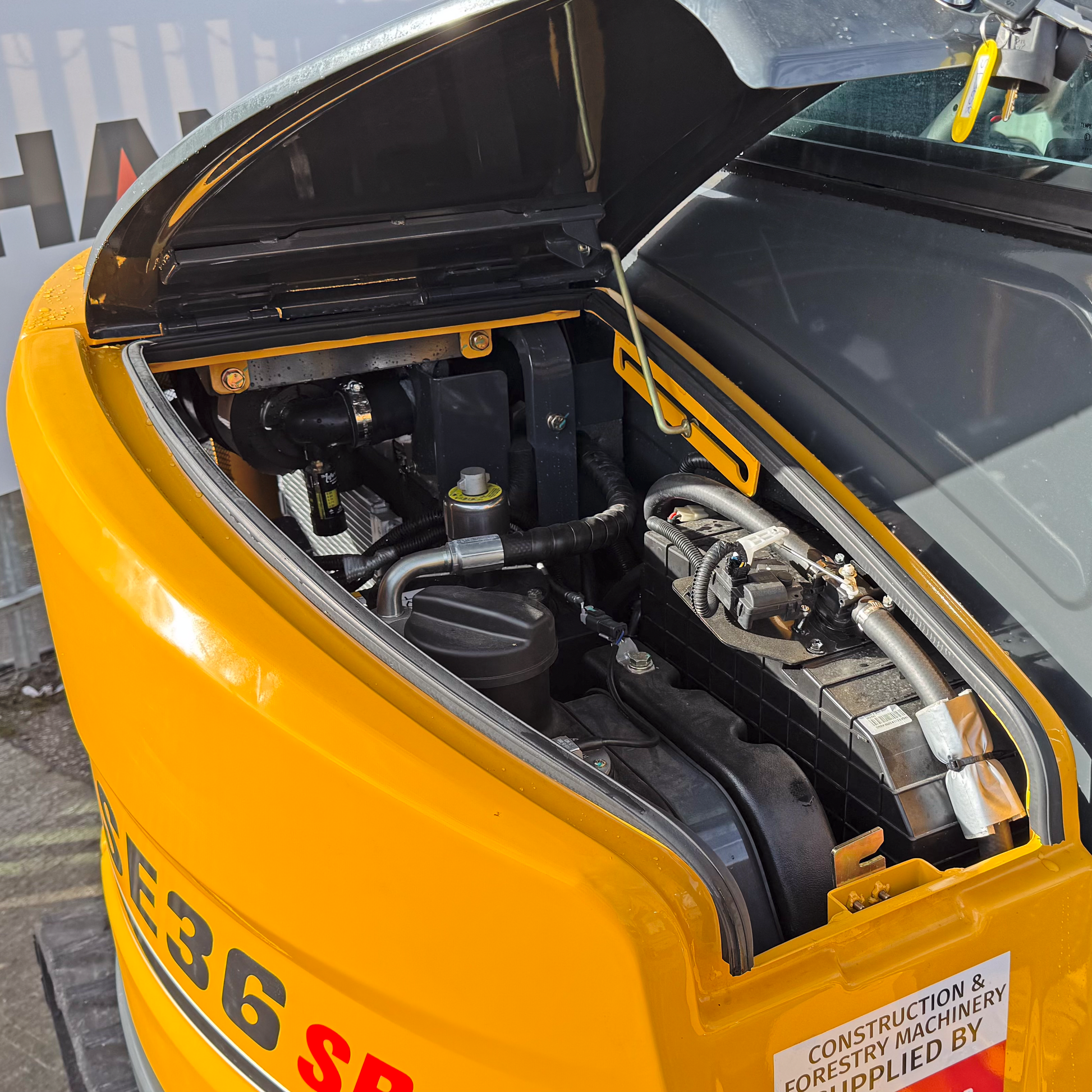

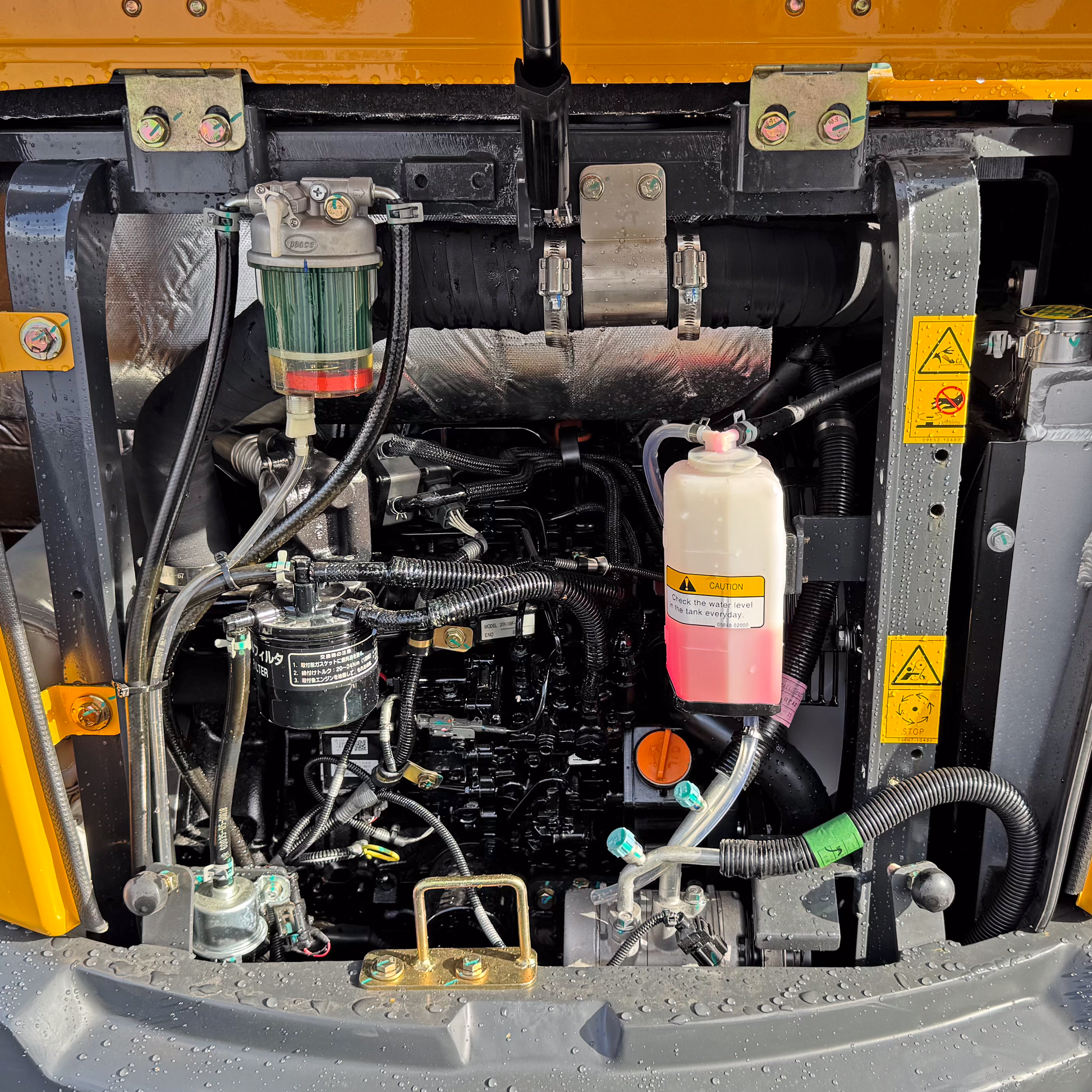

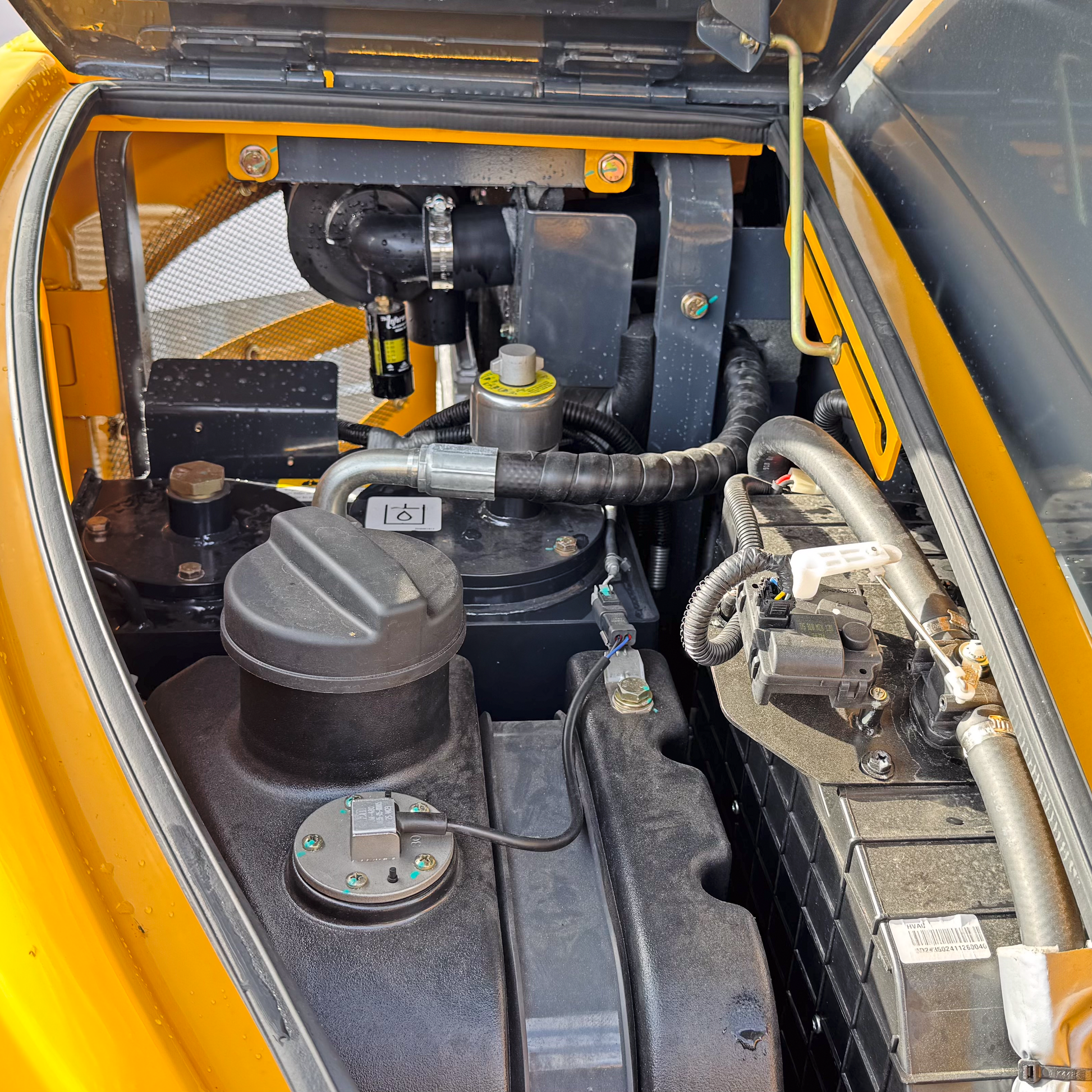

Motor

• Model: Yanmar 3TNV88F
• Water-cooled 3-cylinder engine
• Emissions Standard: Euro 5 / Stage V
• Displacement: 1.642 L
• Power: 25 hp (18.2 kW) @ 2400 rpm

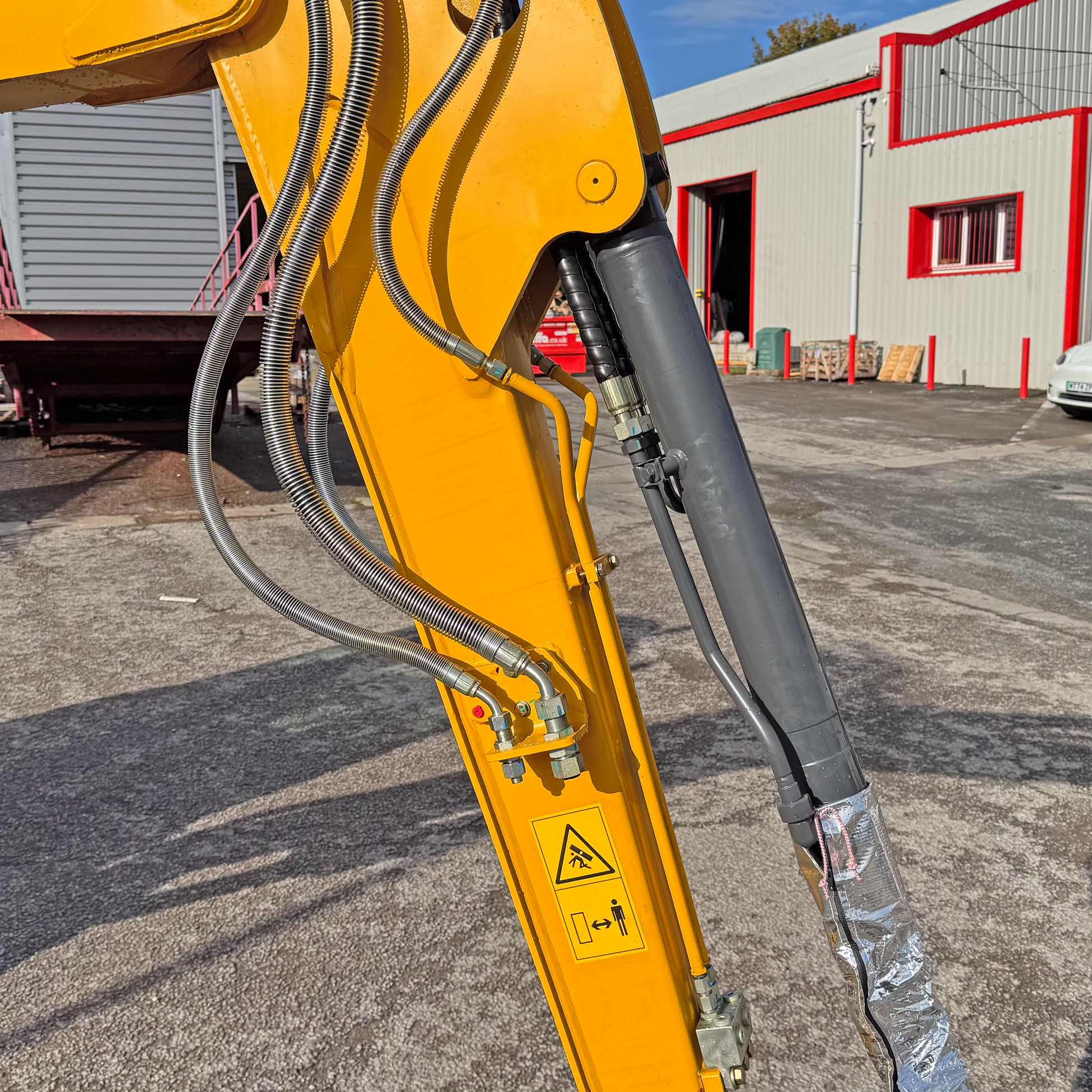

Hydraulic System

• Pump: Hengli HP5V45 (Axial piston variable displacement)
• Control Block: Hengli HVSE-09
• Traction Motors: Eddie FTM03
• Swivel Motor: Hengli HM5X18
• Max Hydraulic Flow: 96.8 L/min
• AUX 1 Flow: 52 L/min
• AUX 2 Flow: 29 L/min

Tear Strength (ISO6015)

• Bucket: 30.4 kN
• Arm: 18.2 kN

Shovel

• As needed

Drive

• Type: Axial piston motor
• Rollers: 2×4
• Driving Speed: 2.4 / 4.4 km/h
• Gradeability: 30°

Swivel System

• Swivel Speed: 0–9 rpm

Filling Quantities

• Fuel Tank: 50 L
• Cooling System: 7 L
• Engine Oil: 6.7 L
• Hydraulic Oil Tank: 40 L

Ground Pressure

• Chain Width: 300 mm
• Ground Pressure: 32 kPa

Operating Weight

• Operating Weight: 3800 kg

Dimensions (mm)

• A Transport Length (arm lowered): 4880
• B Ground Contact Transport Length: 3360
• C Undercarriage Width: 1880
• D Undercarriage Length: 2020

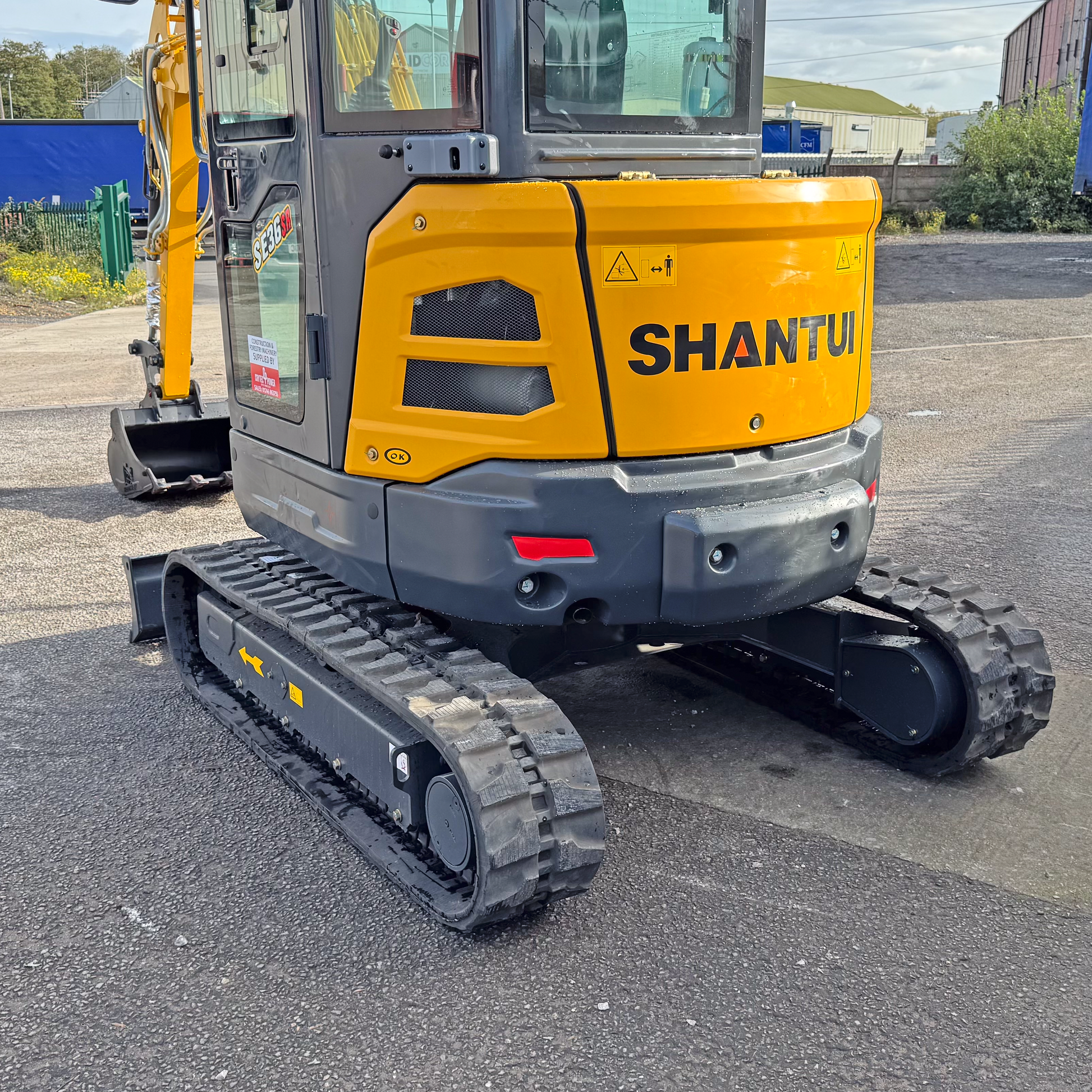

• E Uppercarriage (Zero Tail): 1400

Working Area (mm)

• A Max. Digging Height: 4910
• B Max. Discharge Height: 3545
• C Max. Digging Depth: 3075
• D Max. Vertical Digging Depth: 2640
• F Max. Digging Radius: 5500
• G Max. Digging Radius at Ground Level: 5345

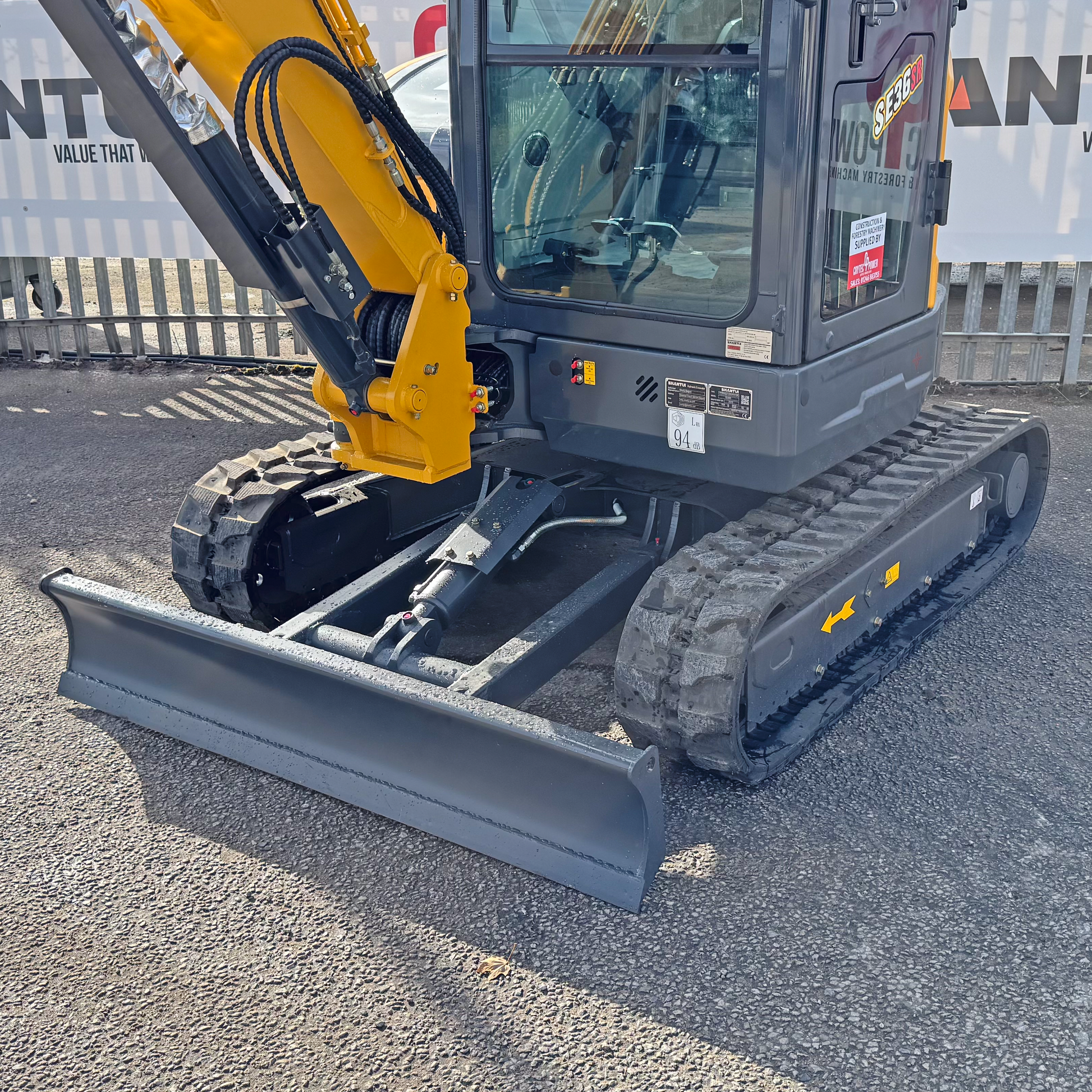

• H Max. Height of Dozer: 375
• I Max. Digging Depth of Dozer: 370

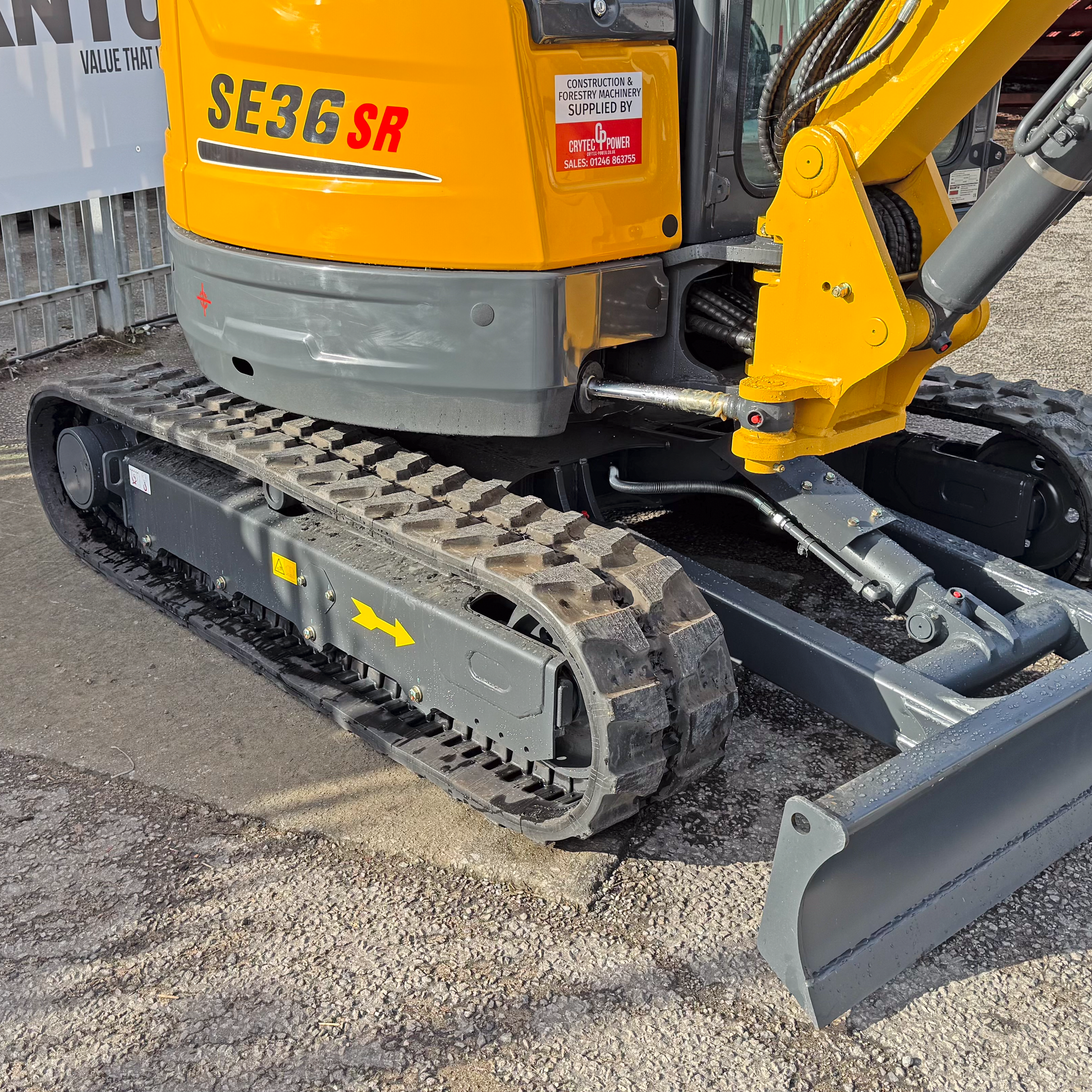

Comes with rubber tracks as standard.

UK Spec including amber and green flashing lights.
