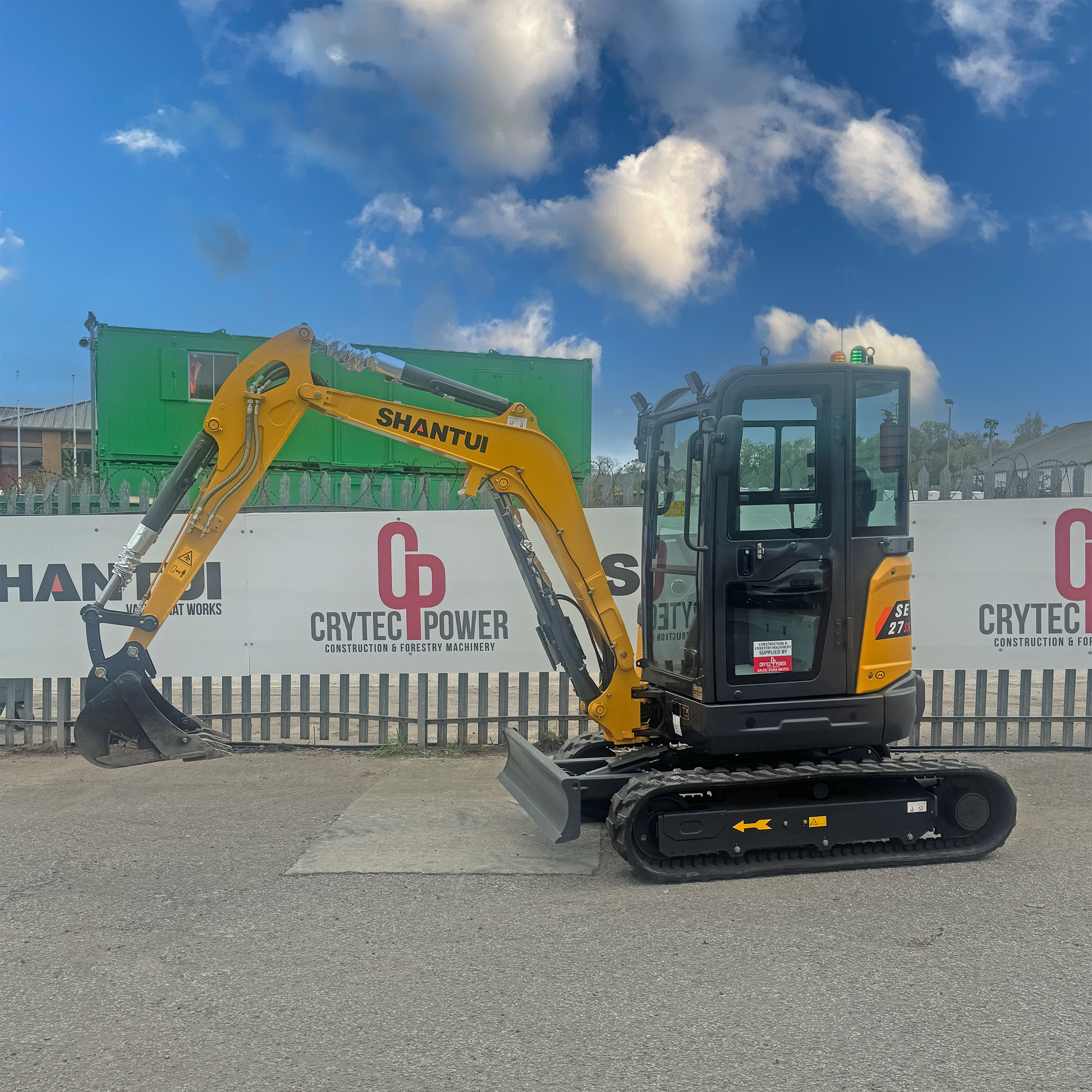

Shantui SE27SR Mini Excavator | Kubota Engine Euro Stage 5 | 2750kg | 3 Cylinder

Full brochure here

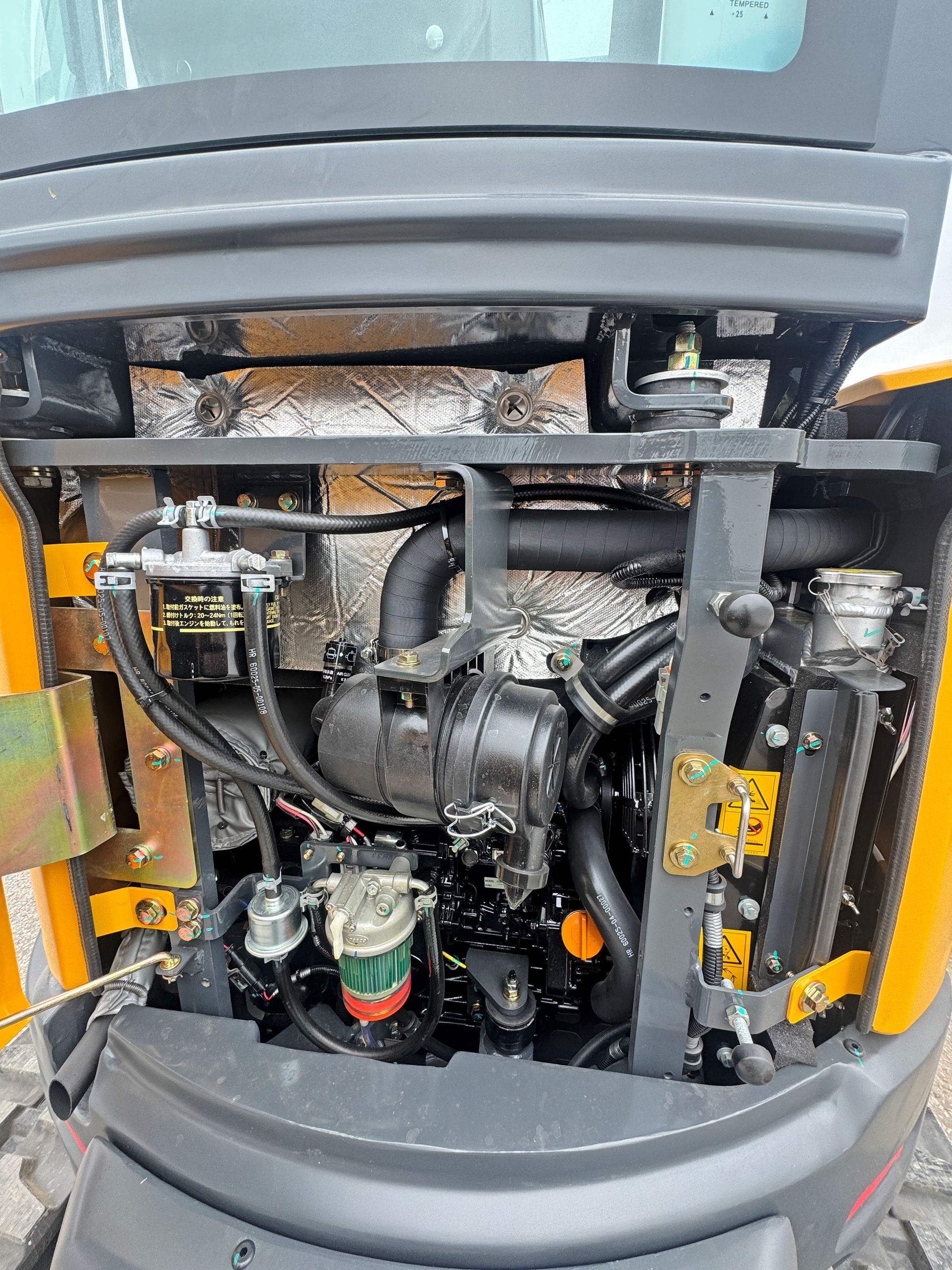

Motor

• Model: Yanmar 3TNV80F
• Water-cooled 3-cylinder engine
• Emissions Standard: Euro 5 / Stage V
• Displacement: 1.267 L
• Power: 20 hp (14.6 kW) @ 2400 rpm

Hydraulic System

• Pump: Hengli HP5V45 (Axial piston variable displacement)
• Control Block: Hengli HVSE-09
• Traction Motors: Eddie FTM02
• Swivel Motor: Hengli HM5X15
• Max Hydraulic Flow: 87 L/min
• AUX 1 Flow: 46 L/min
• AUX 2 Flow: 29 L/min

Tear Strength (ISO6015)

• Bucket: 24 kN
• Arm: 14.8 kN

Shovel

• As needed

Drive

• Type: Axial piston motor
• Rollers: 2×3
• Driving Speed: 2 / 3.1 km/h
• Max Tensile Force: 29 kN
• Gradeability: 30°

Swivel System

• Swivel Speed: 0–10 rpm

Filling Quantities

• Fuel Tank: 33 L
• Cooling System: 5 L
• Engine Oil: 3.4 L
• Hydraulic Oil Tank: 22 L

Ground Pressure

• Chain Width: 300 mm
• Ground Pressure: 26.3 kPa

Operating Weight

• Operating Weight: 2750 kg

Dimensions (mm)

• A Transport Length (arm lowered): 4200
• B Ground Contact Transport Length: 2480
• C Undercarriage Width: 1550
• D Undercarriage Length: 2020
• E Uppercarriage (Zero Tail): 1400

Working Area (mm)

• A Max. Digging Height: 4390
• B Max. Discharge Height: 3060
• C Max. Digging Depth: 2800
• D Max. Vertical Digging Depth: 2310
• E Max. Digging Radius: 4800
• F Max. Digging Radius at Ground Level: 4680
• G Min. Swivel Radius: 775
• H Min. Tail Swing Radius: 300
• I Max. Digging Depth of Dozer: 320

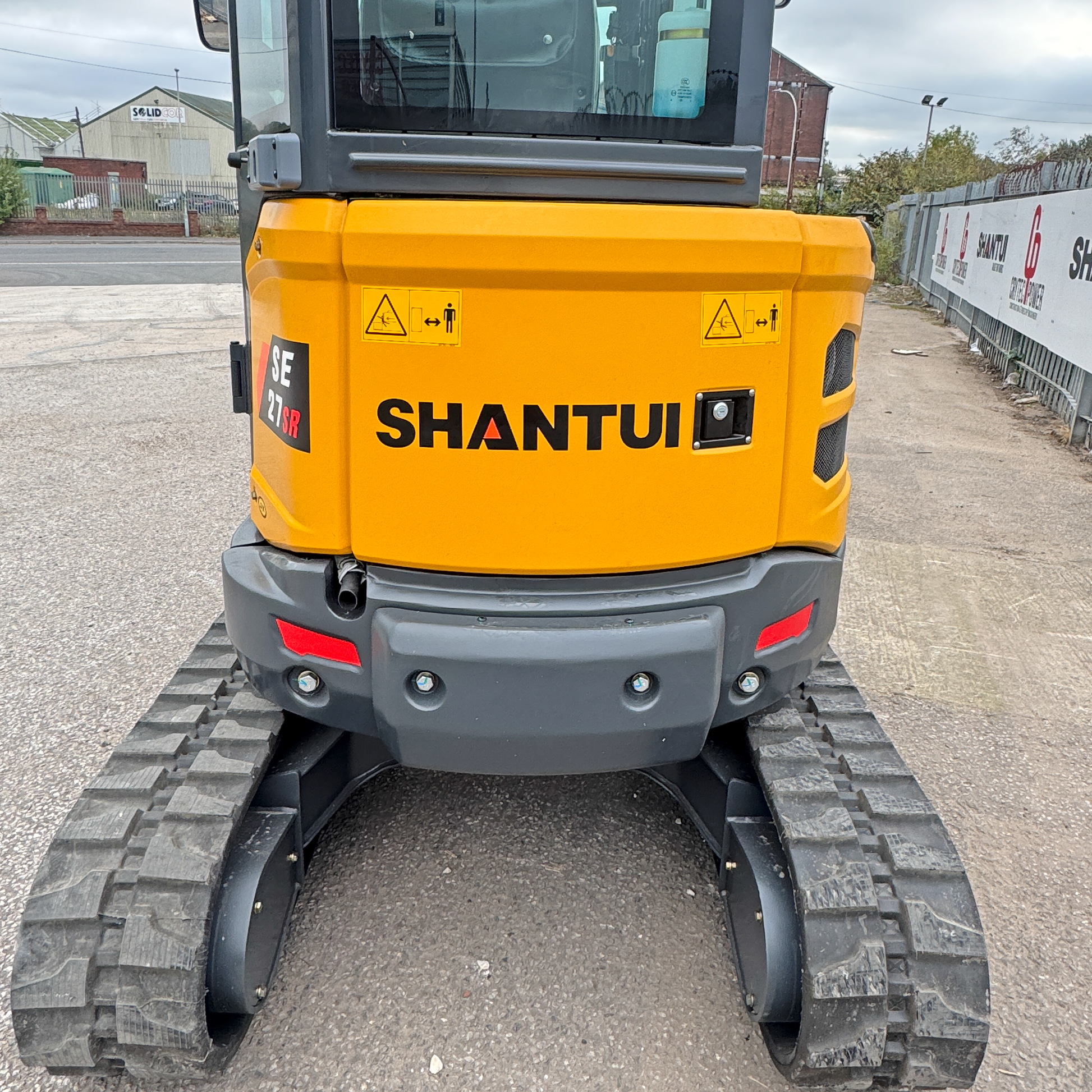

Comes with rubber tracks as standard.

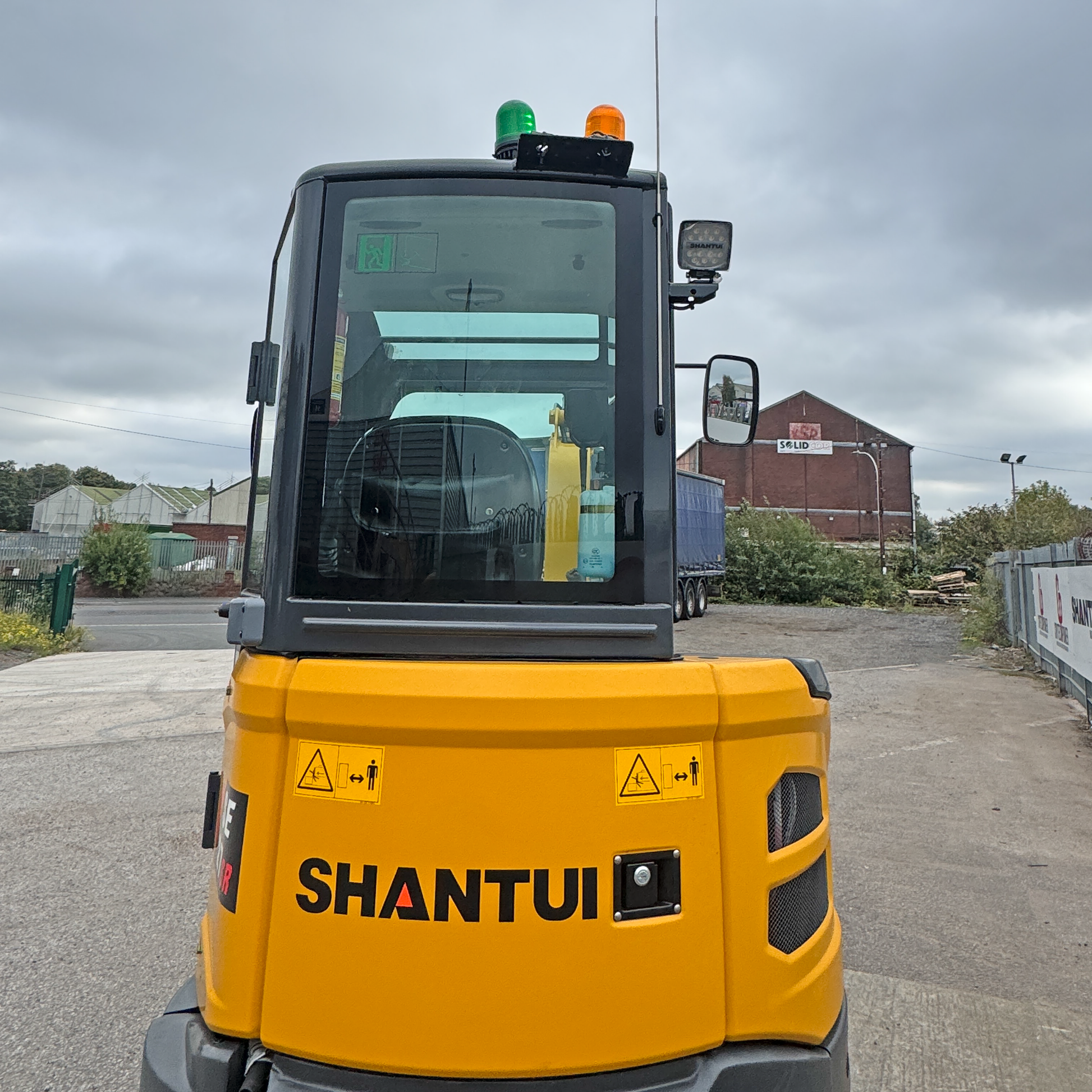

UK Spec including amber and green flashing lights.
