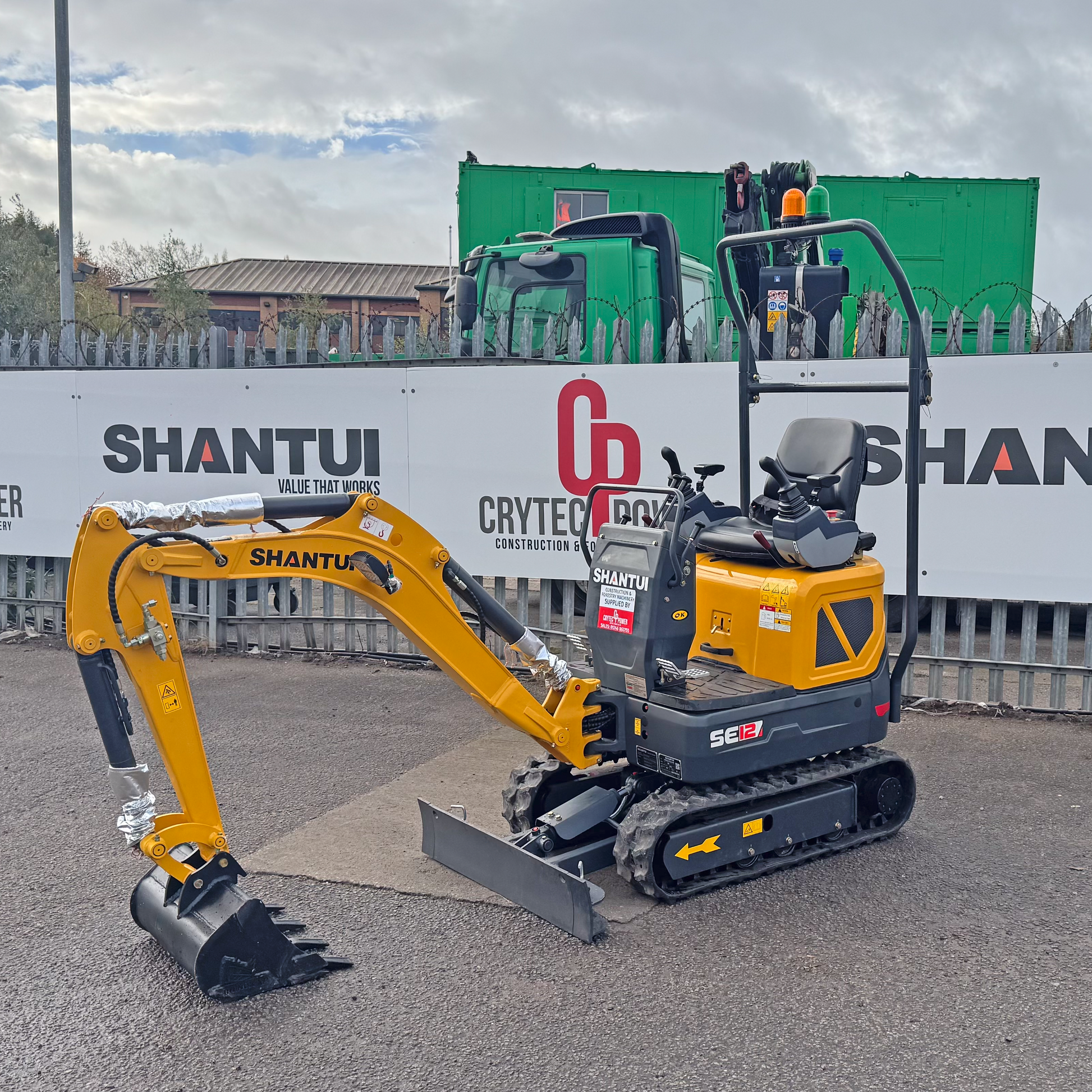

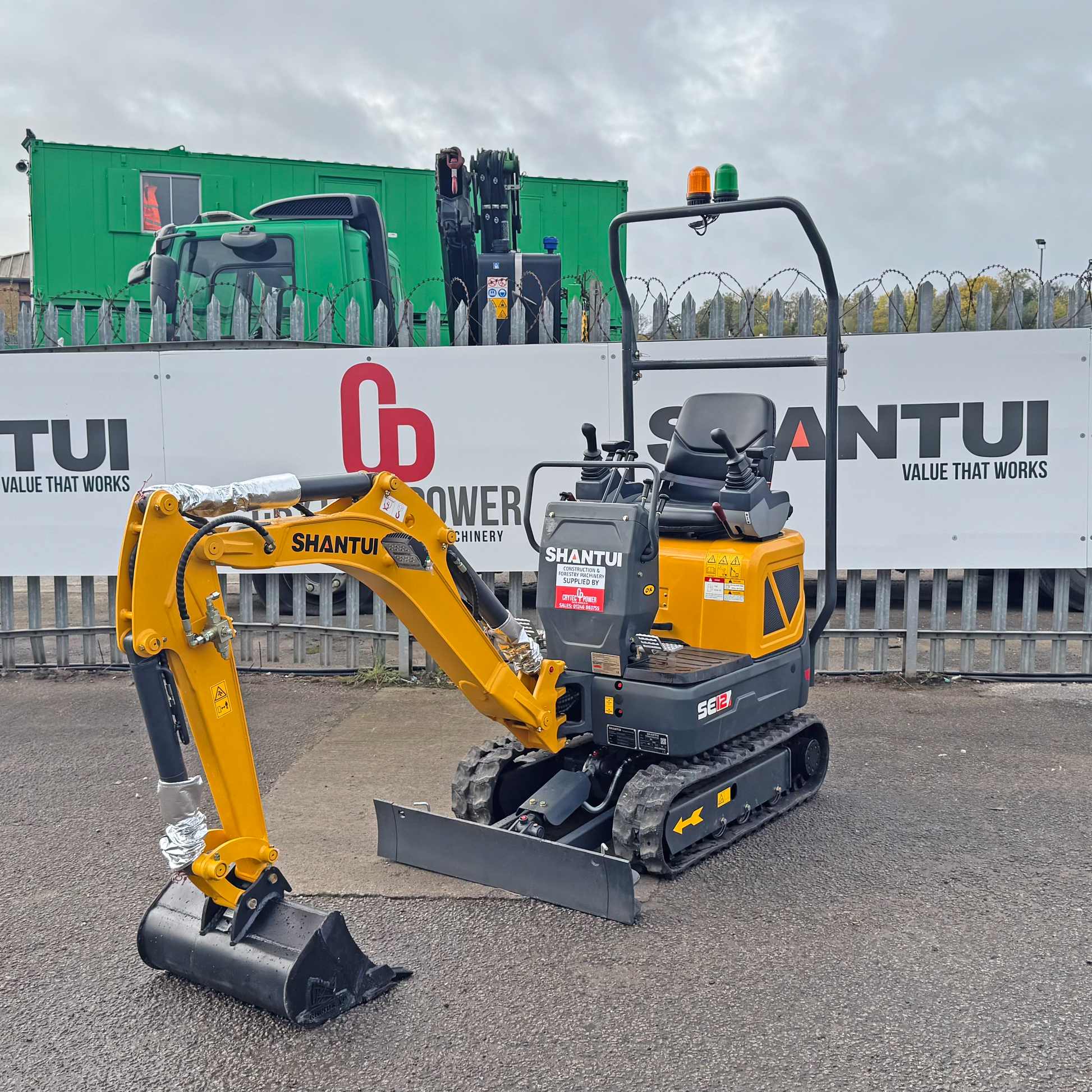

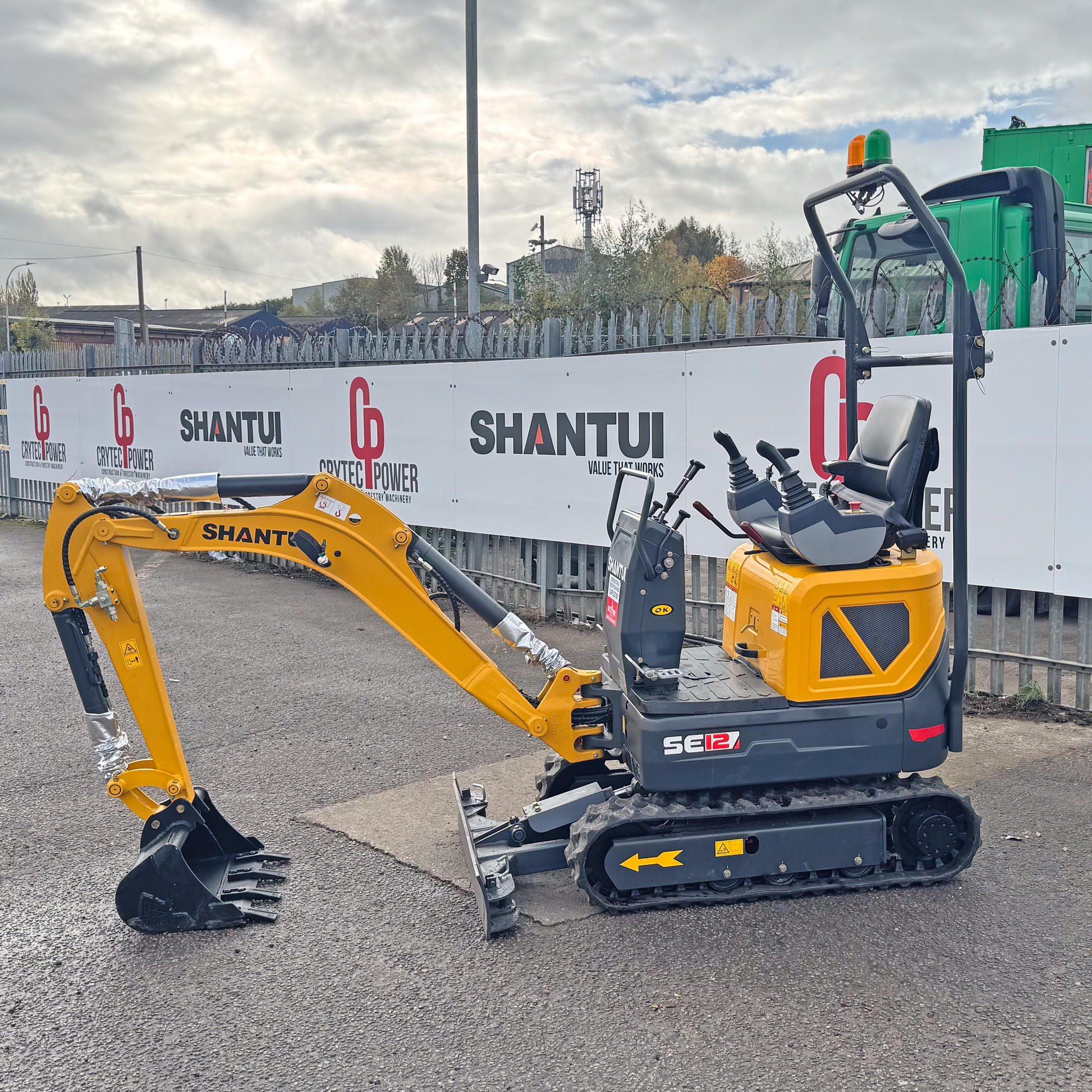

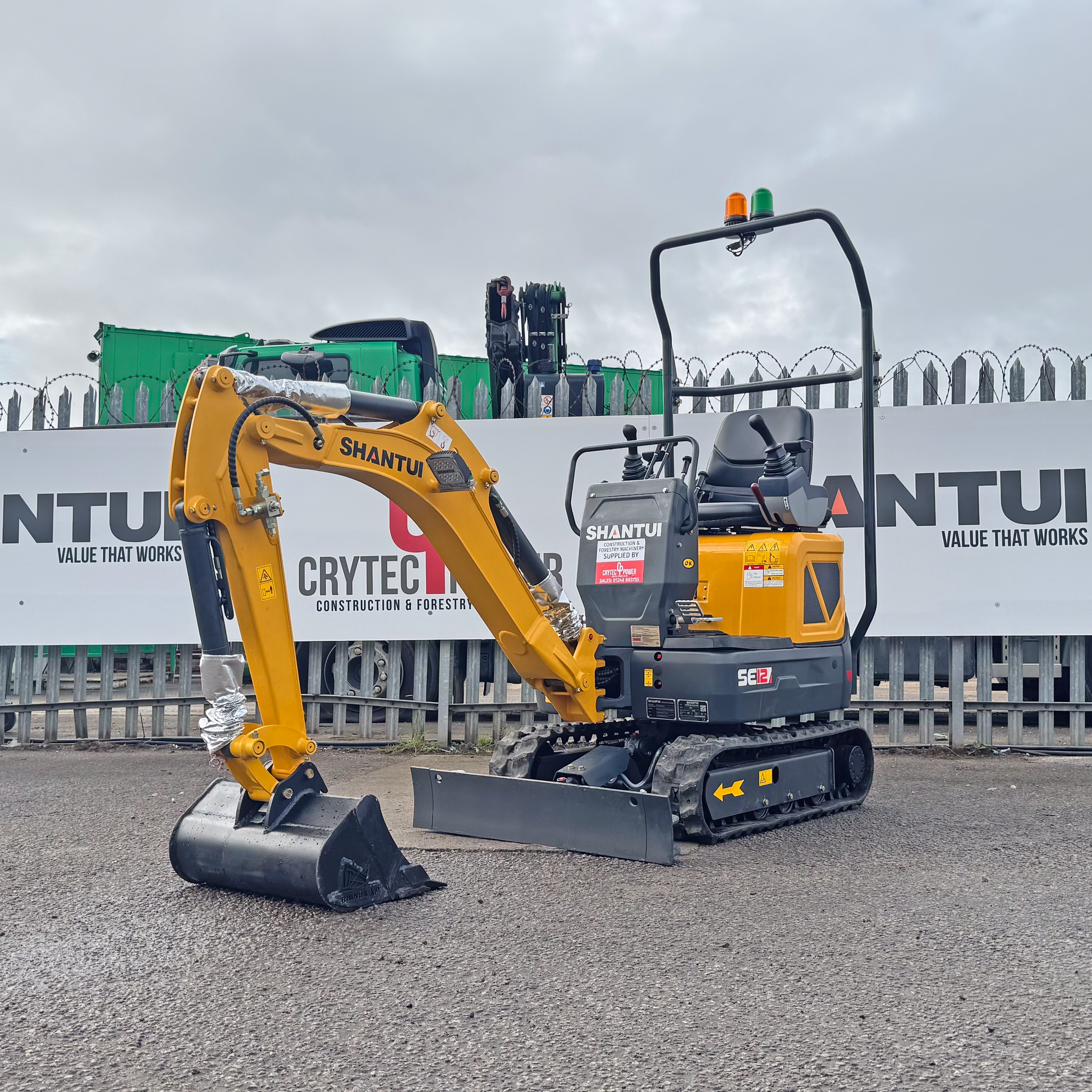

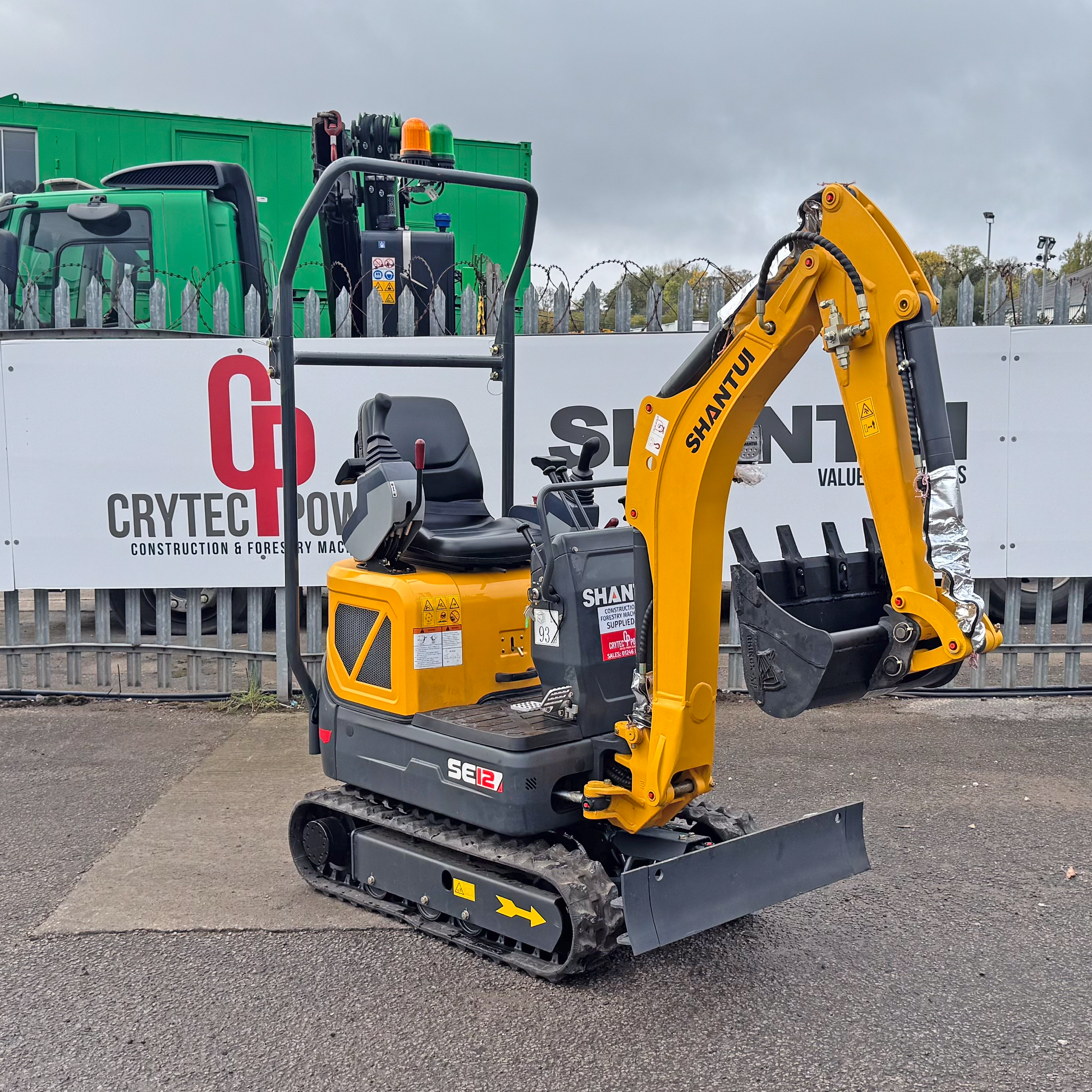

Shantui SE12 Mini Excavator | Kubota Engine Euro Stage 5 | 1200kg | 3 Cylinder

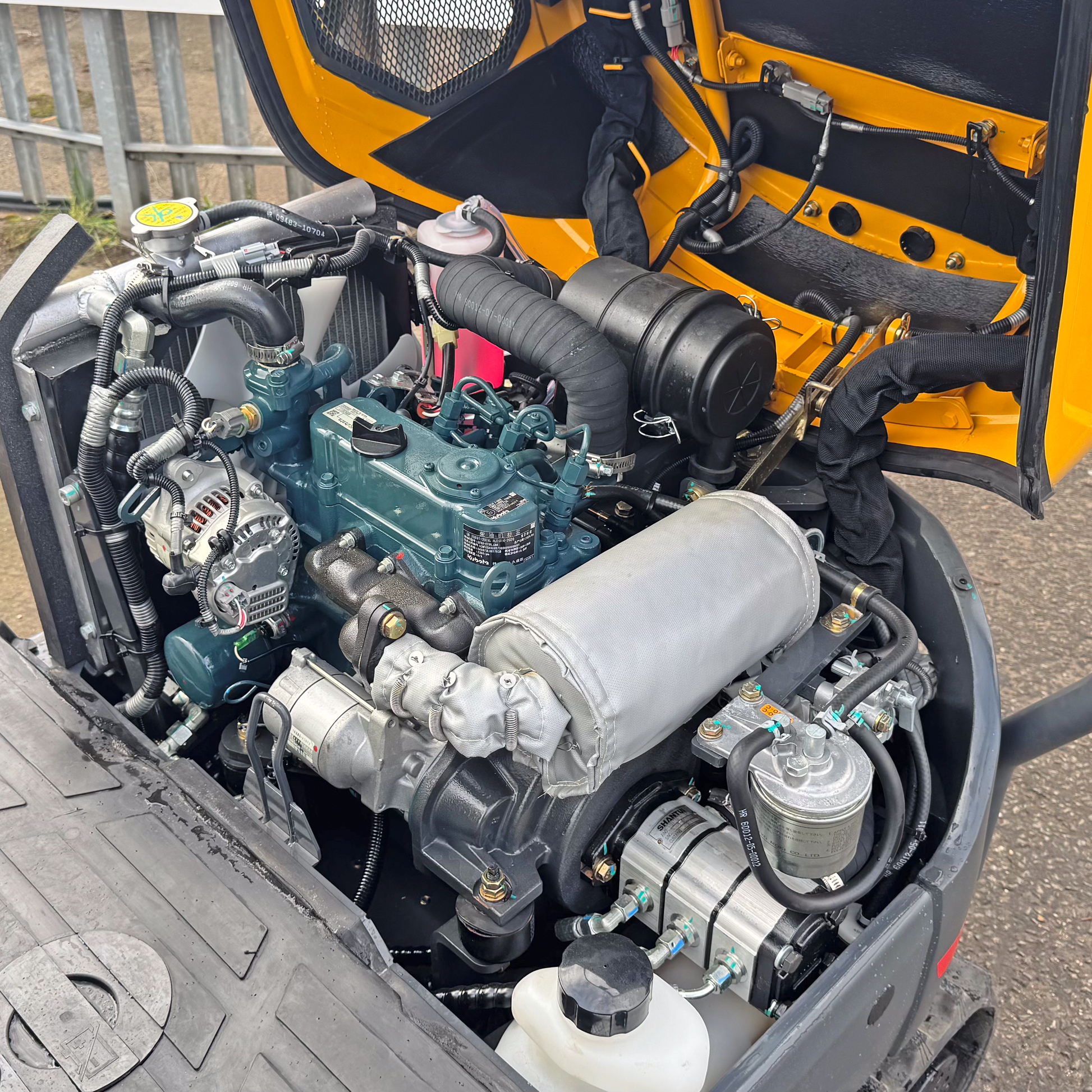

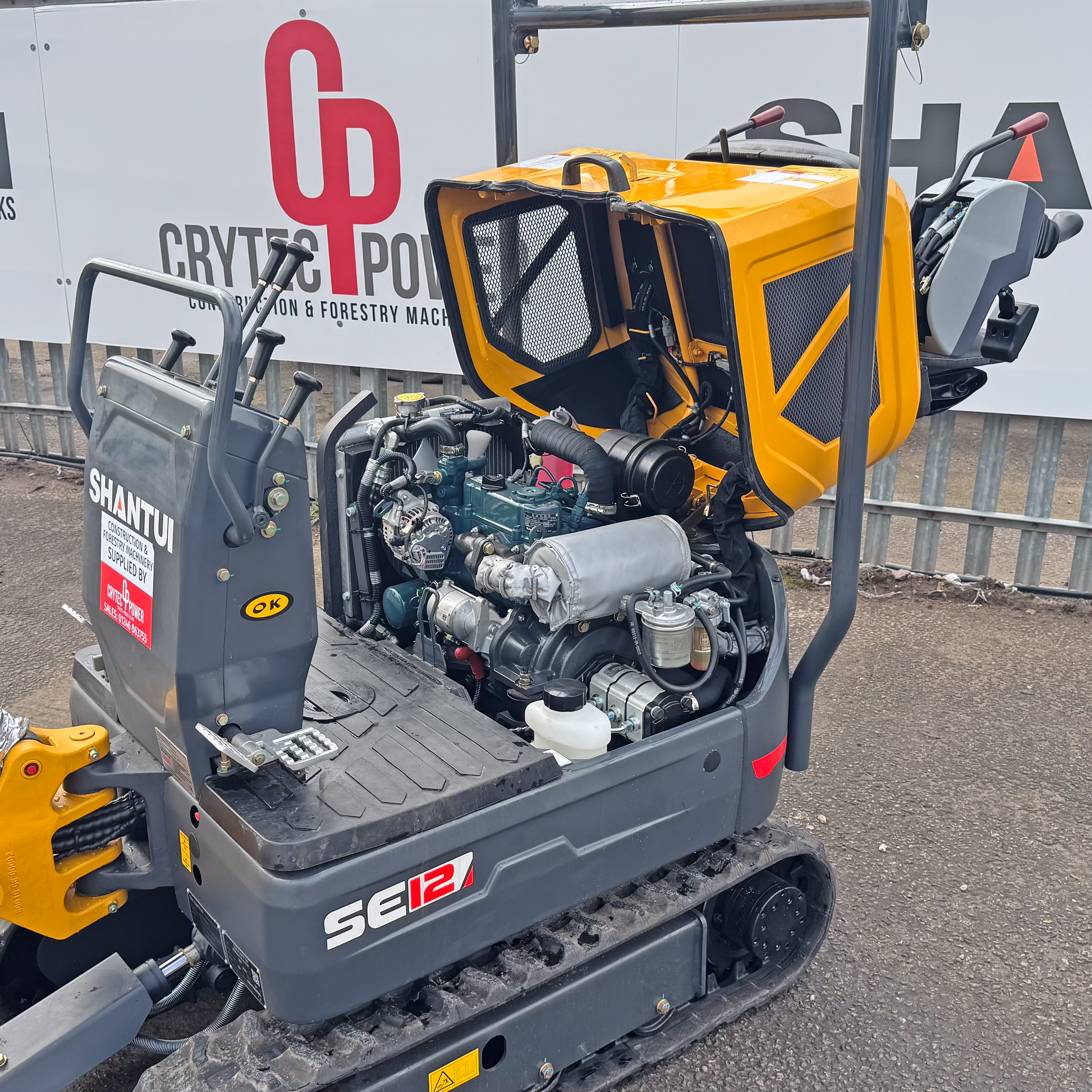

Motor

• Model: KUBOTA D782
• Water-cooled 3-cylinder
• Emissions: Euro 5 / Stage V
• Displacement: 0.788L
• Power: 13hp (9.8kW) @ 2300rpm

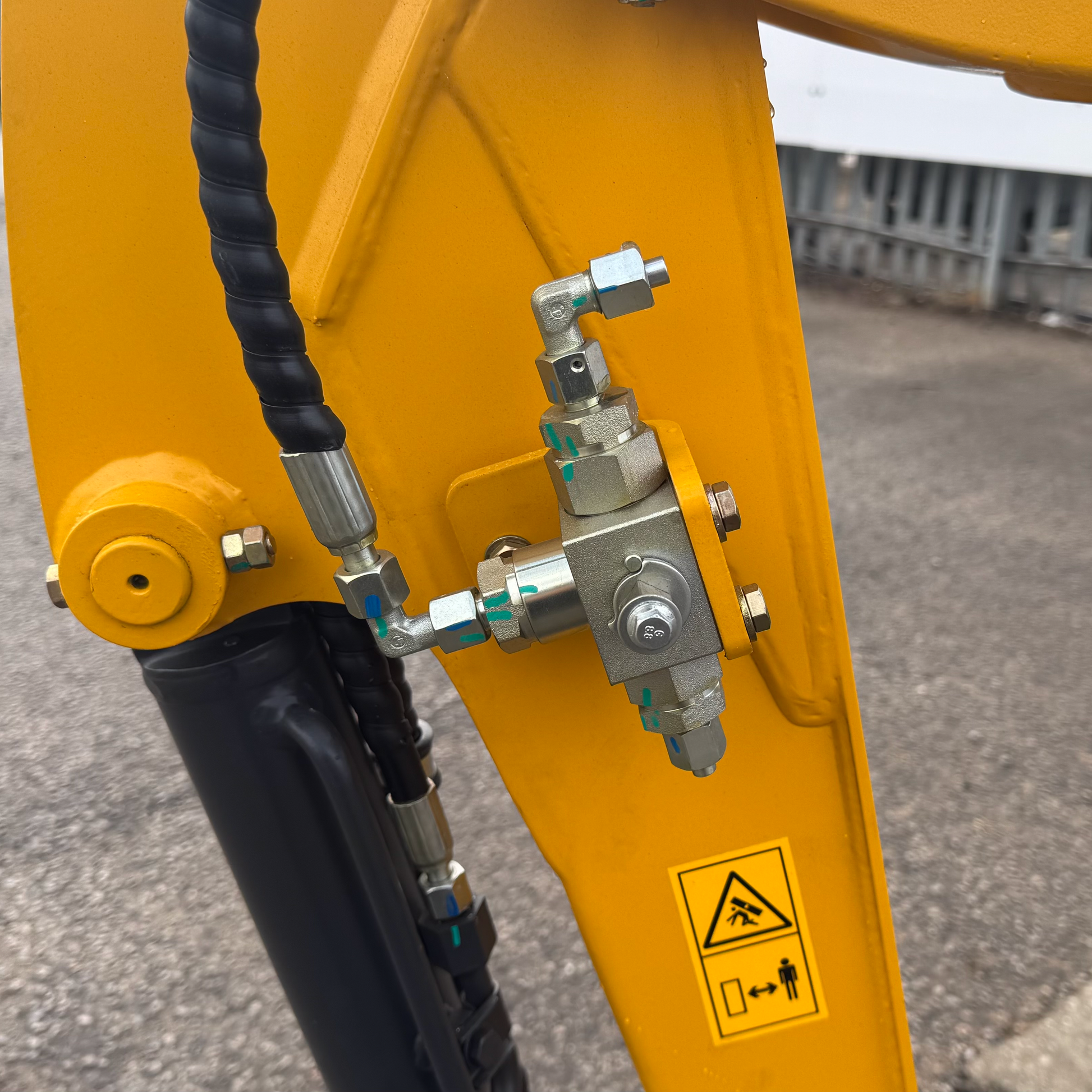

Hydraulic System

• Control Block: NABO
• Danfoss anti-reb + rotary motors
• Max Flow: 10.6 + 10.6 + 10.6 L/min

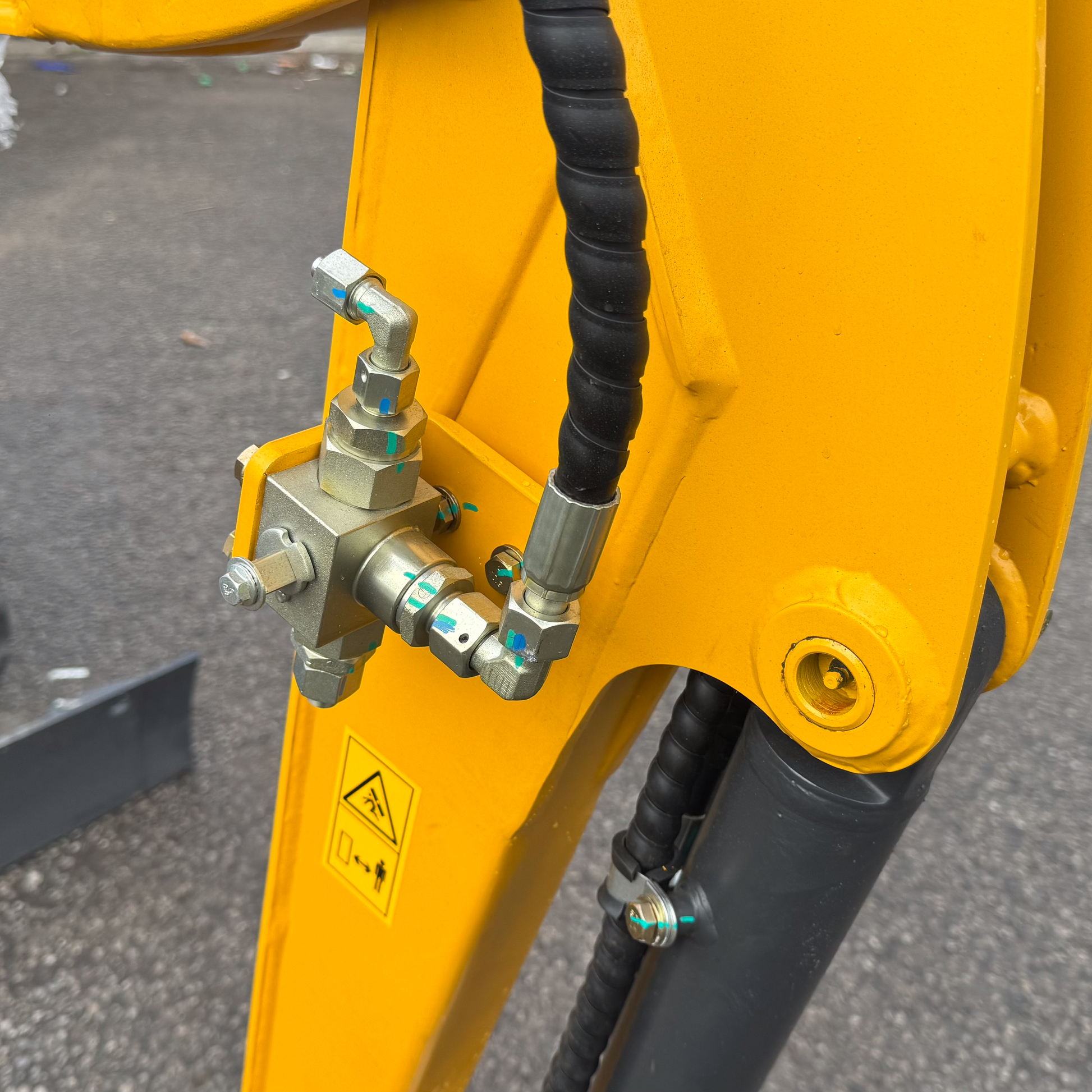

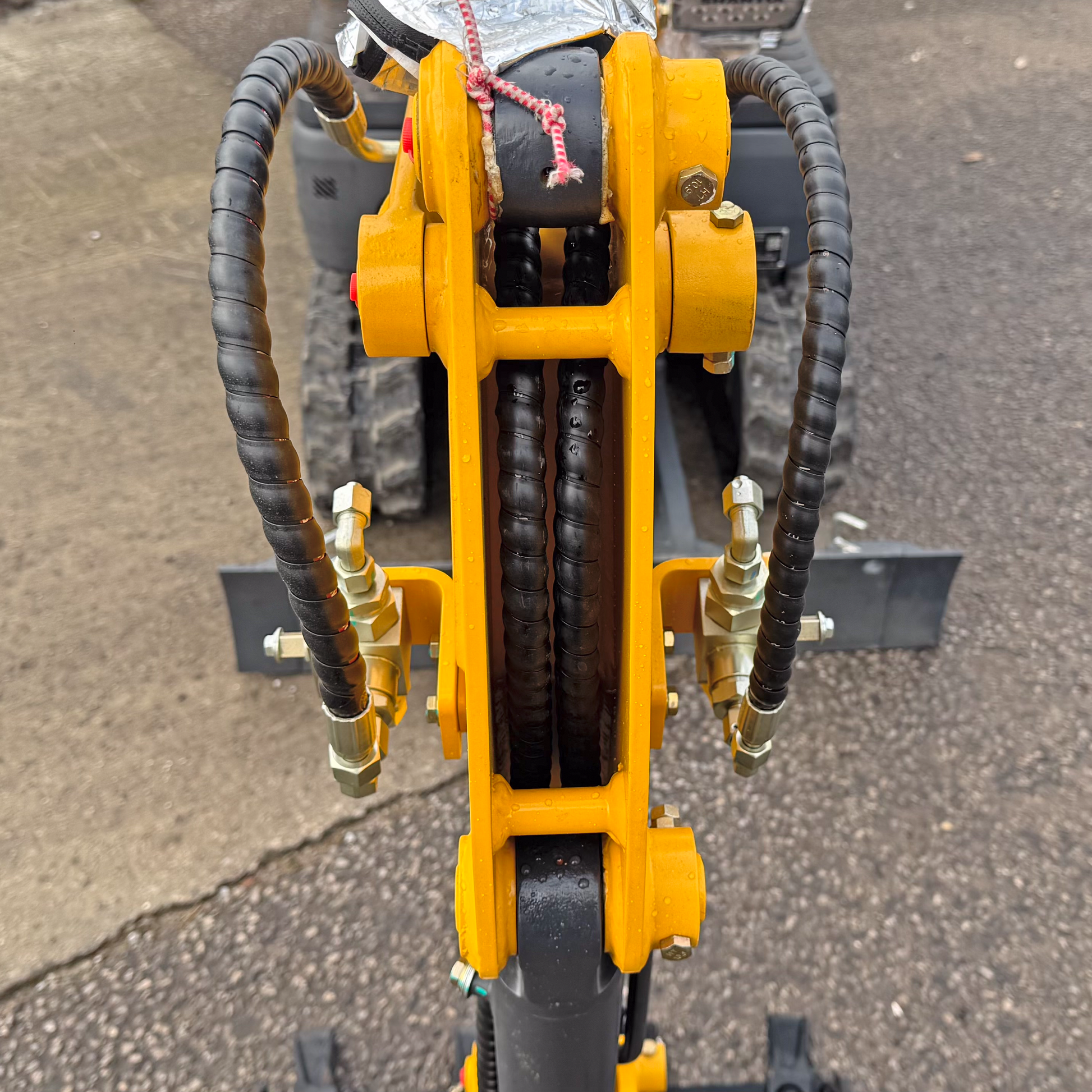

• AUX1 Flow: 18 L/min @ 2300rpm

Drive

• Type: Orbit
• Rollers: 2×3
• Speed: 2 / 3.5 km/h
• Max Tensile Force: 12kN
• Max Gradient: 25%

Filling Capacities

• Fuel Tank: 10L
• Cooling System: 3.1L
• Engine Oil: 3.8L
• Hydraulic Oil Tank: 16.3L

Tear Strength (ISO6015)

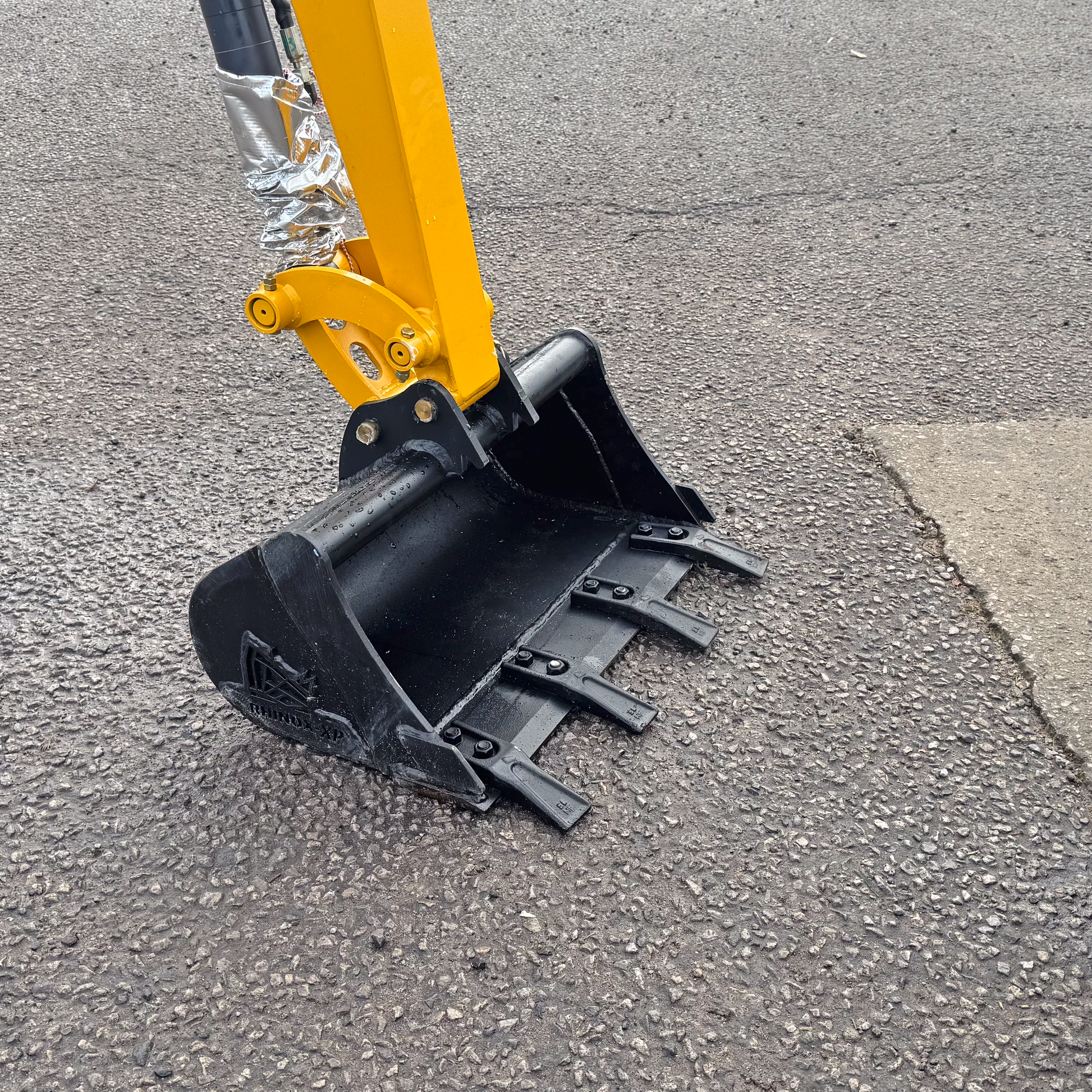

• Bucket: 10.4kN
• Arm: 5.4kN

Ground Pressure & Tracks

• Chain Width: 180mm
• Ground Pressure: 29kPa

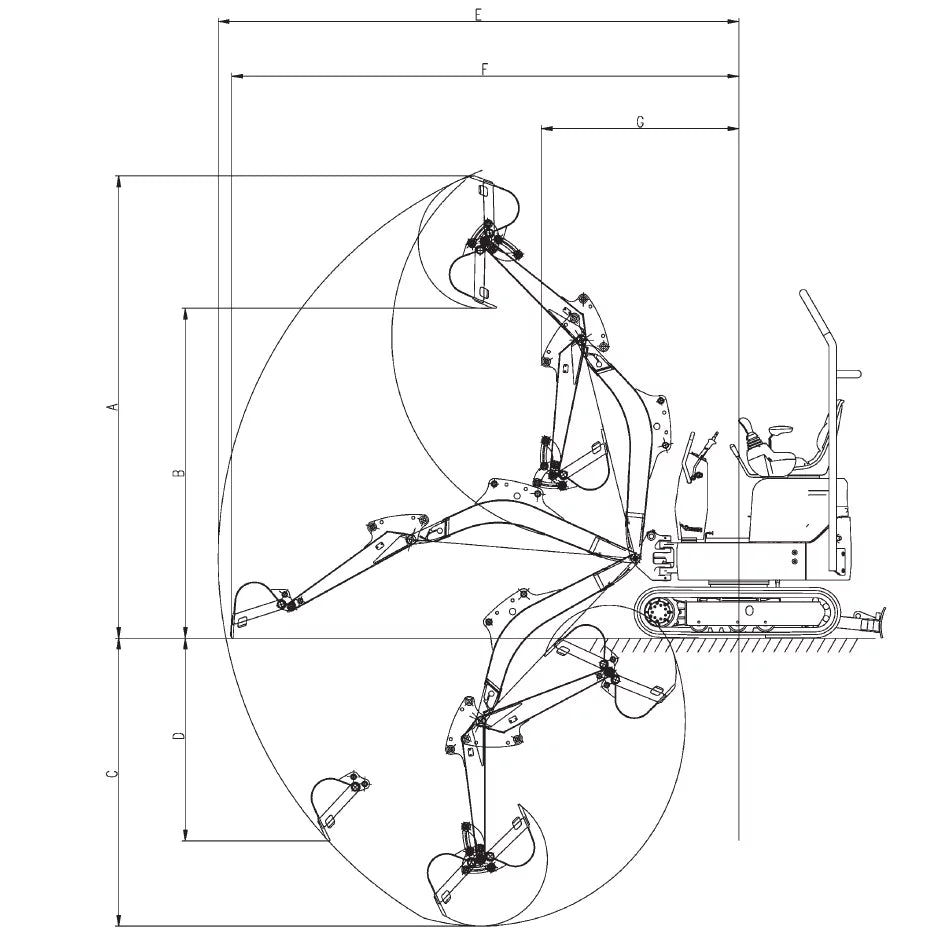

Working Range (mm)

• Max Excavation Height: 3017
• Max Discharge Height: 2147
• Max Dig Depth: 1837
• Max Vertical Dig Depth: 1580
• Max Trench Spacing: 3360
• Max Dig Distance (Ground): 3310
• Min Turning Radius: 1330

Swivel System

• Swivel Speed: 0–11 rpm

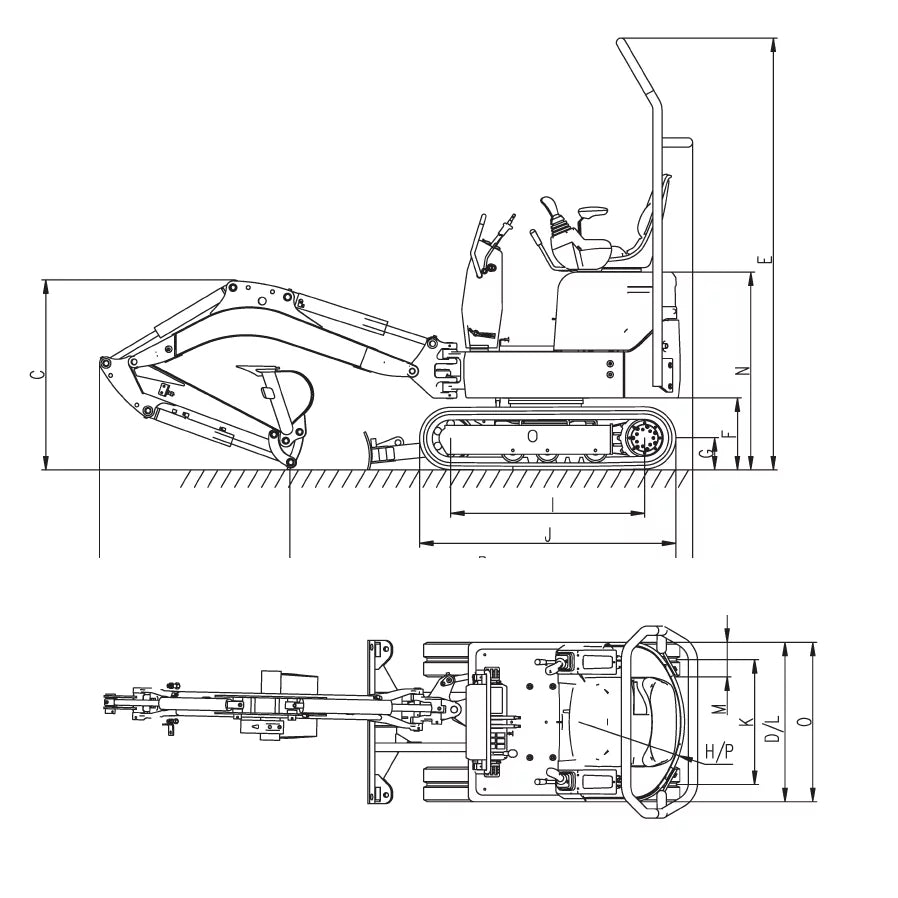

Dimensions (mm)

• Total Length: 3025
• Transport Length: 1835
• Height (Boom Tip): 967
• Width: 830 / 1000
• Height (Cabin Top): 2260
• Counterweight Clearance: 393
• Min Ground Clearance: 108
• Tail Swing Radius: 700
• Crawler Wheelbase: 1010
• Chain Length: 1335
• Track Width: 650 / 820
• Overall Track Width: 830 / 1000
• Shoe Width: 180
• Bonnet Height: 1048
• Frame Width: 830
• Swivel Center to Rear: 700

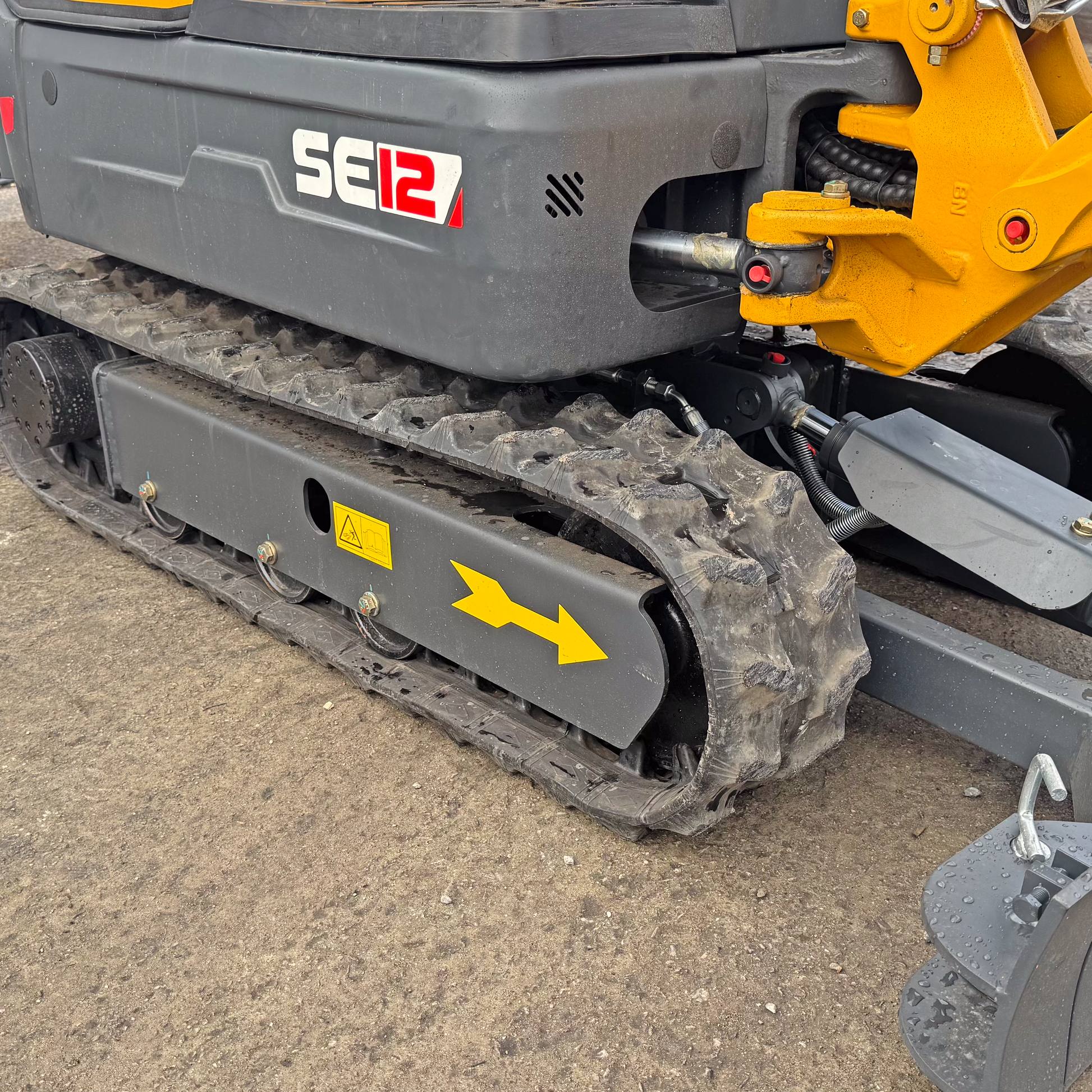

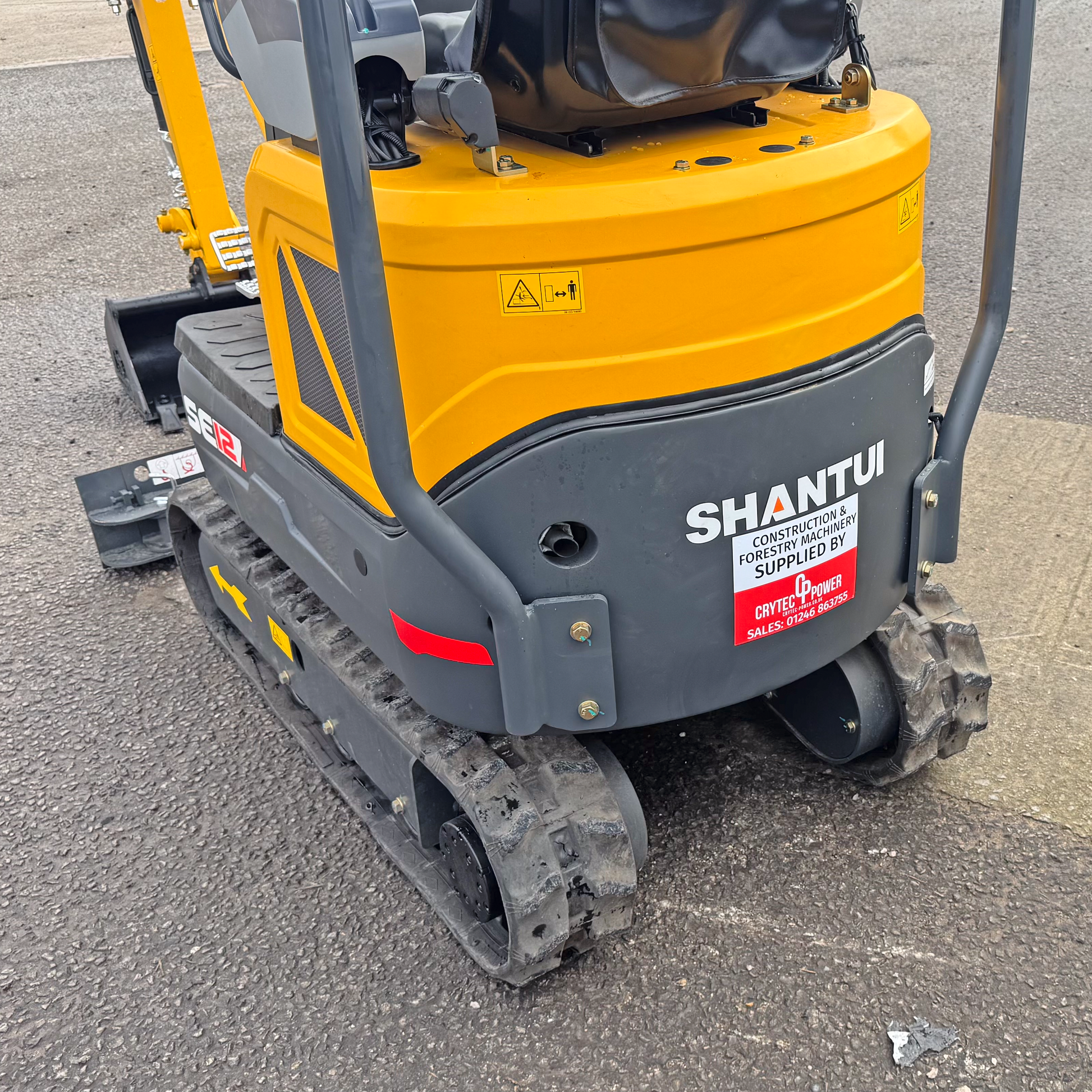

Comes with rubber tracks as standard.

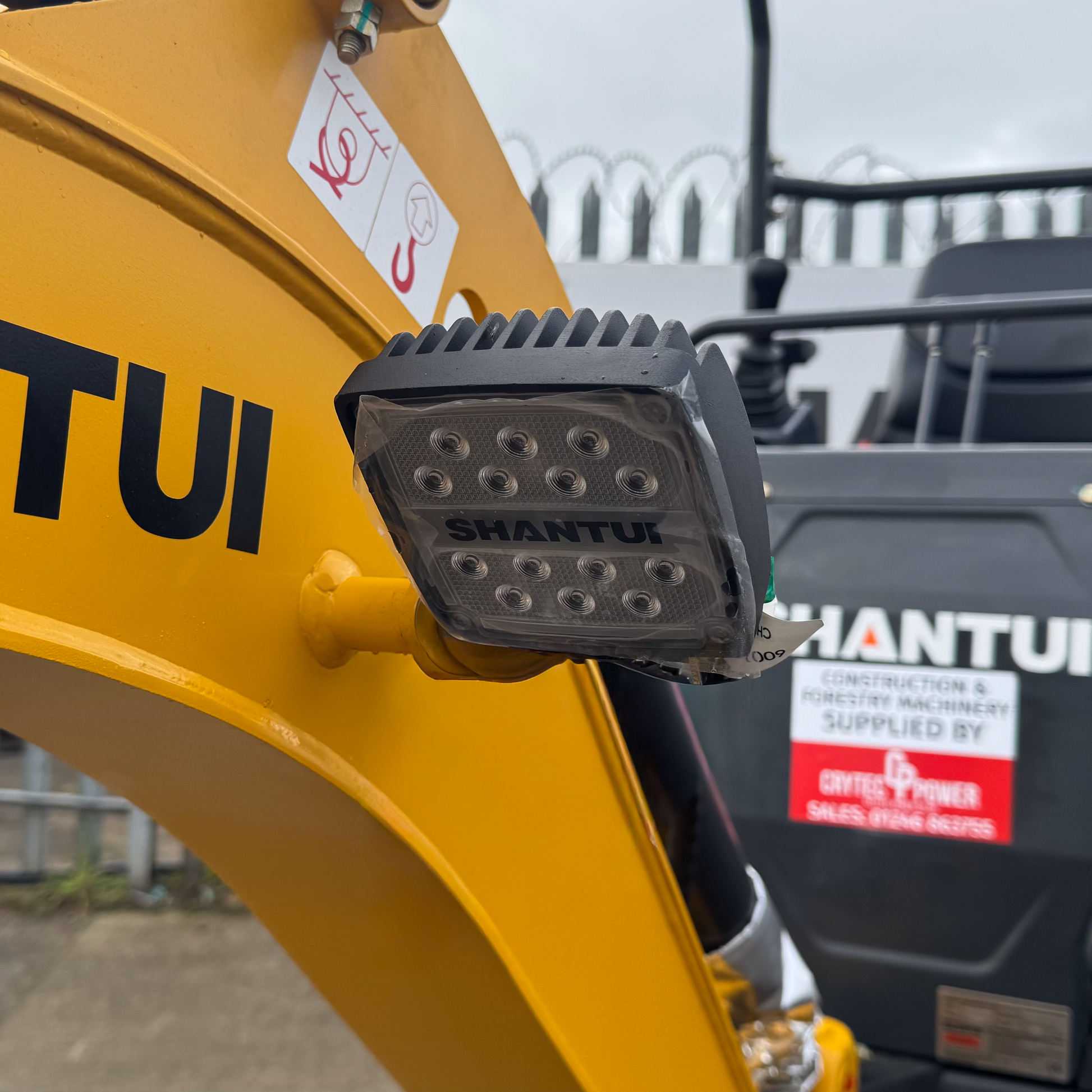

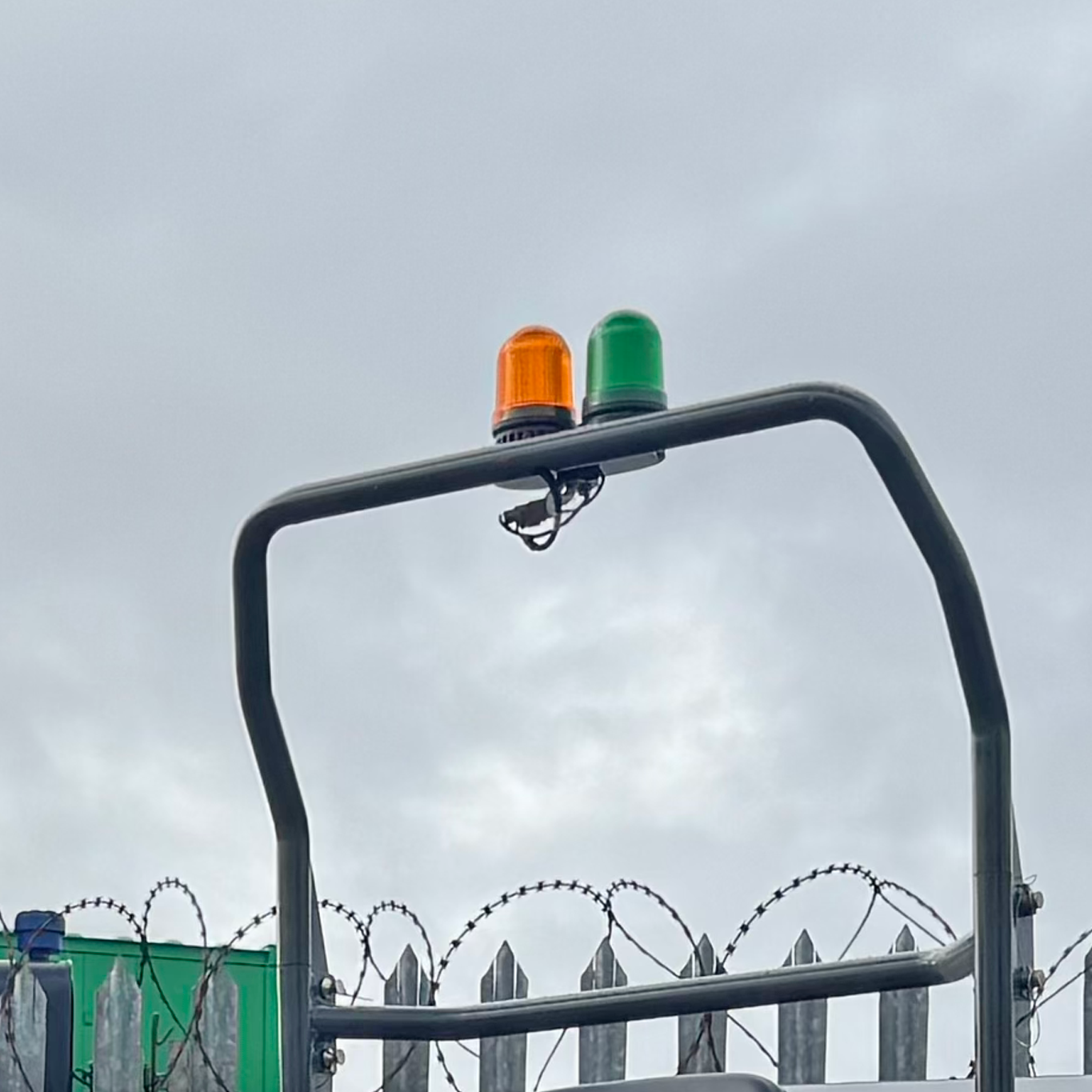

UK Spec including amber and green flashing lights.
