Crytec CRD130-K 1.5 Tonne Diesel Loader Kubota Engine
Crytec CRD130-K 1.5 Tonne Diesel Loader Kubota Engine
Couldn't load pickup availability
Warranty
Warranty
There is a 1 year warranty included on this machine.
PRICE IS FOR COLLECTION ONLY - DELIVERY CAN BE ARRANGED FOR A FEE

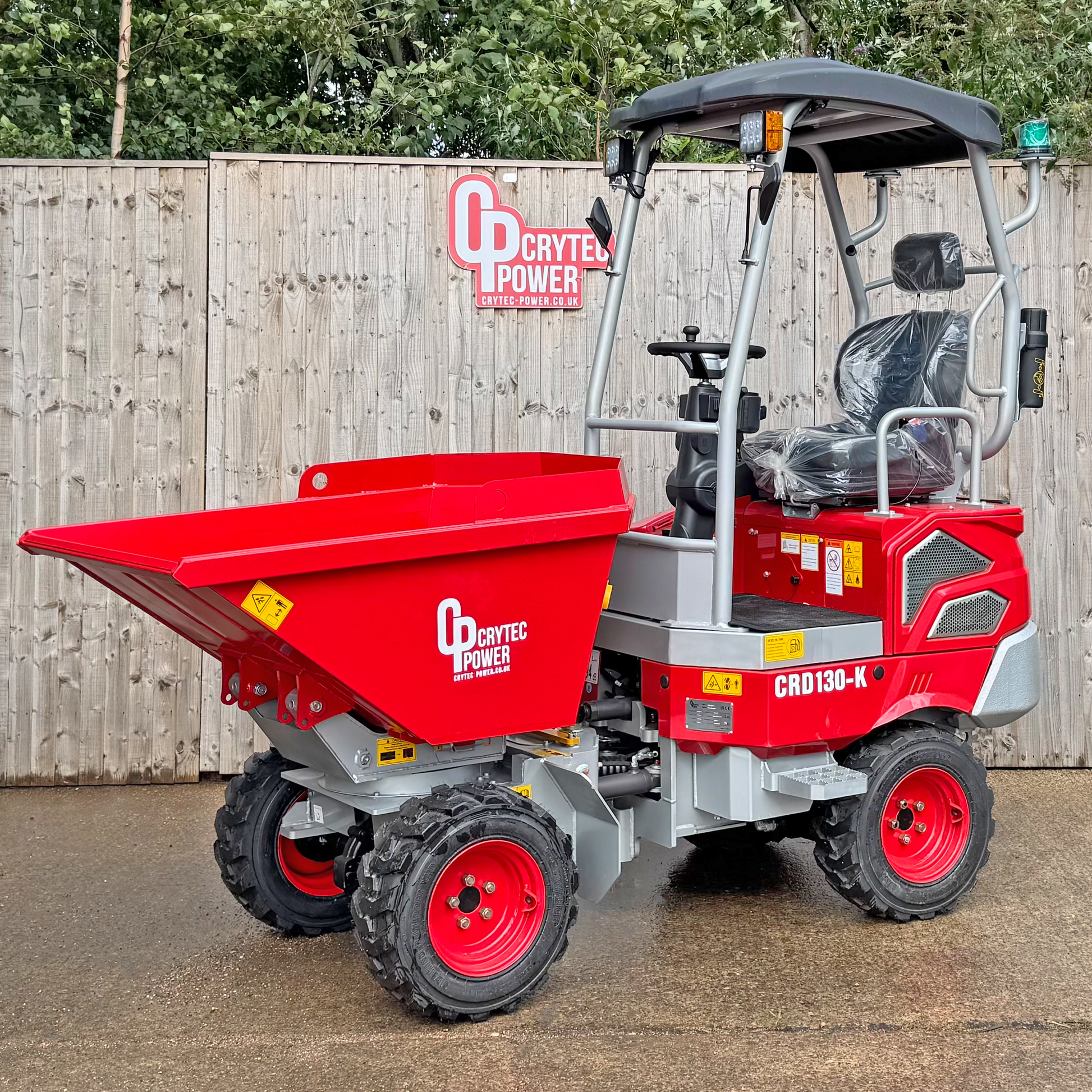

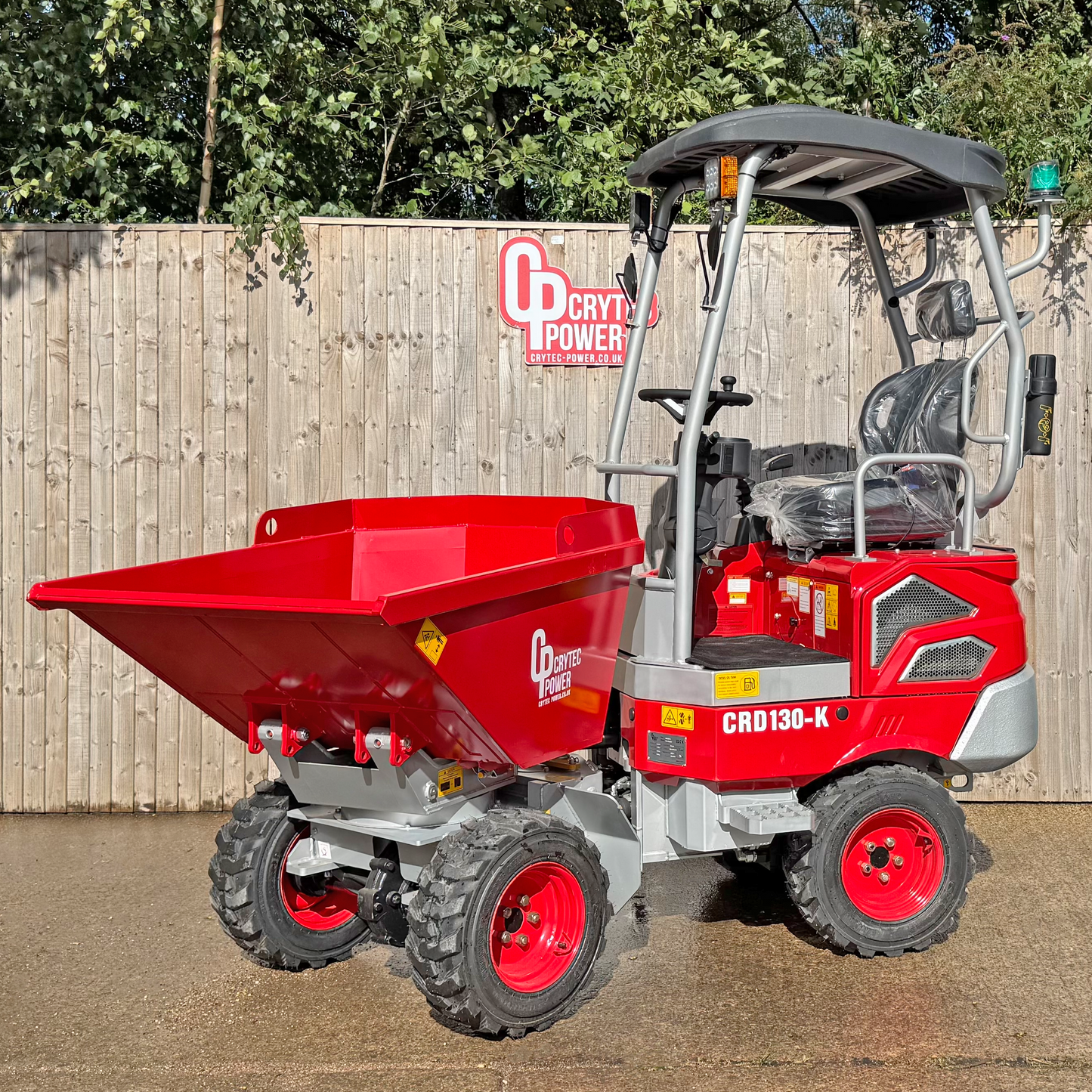

The Crytec CRD130-K Dumper is purpose-built for demanding job sites, delivering durability, power, and efficiency in one rugged machine. Weighing 3,480 lbs (1,580 kg), it is engineered to handle heavy-duty tasks with confidence, making it an essential partner for construction crews and material-handling operations. With a maximum load capacity of 3,000 lbs (1,360 kg), the CRD130-K enables you to transport large volumes of material in fewer trips—boosting productivity and cutting down on wasted time.

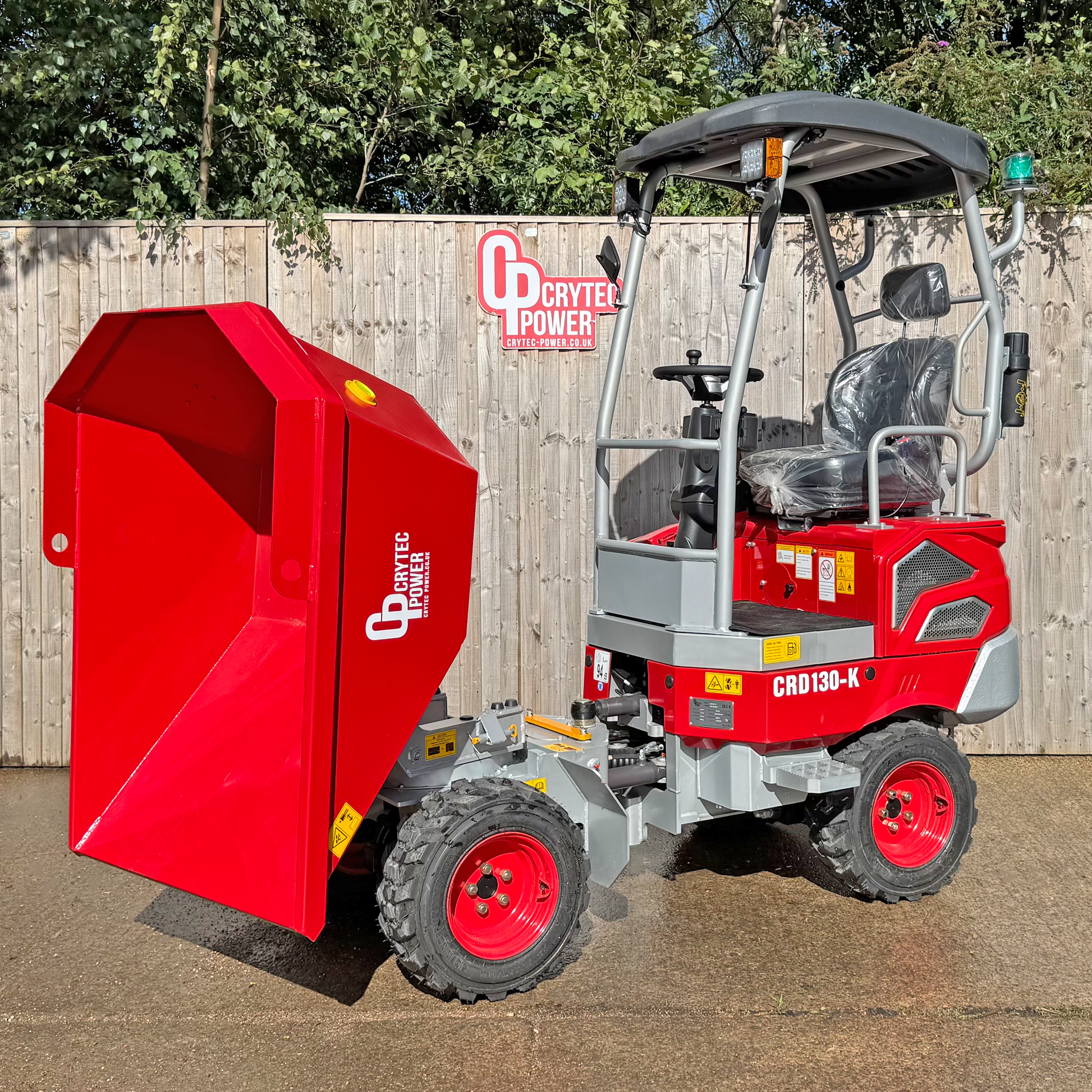

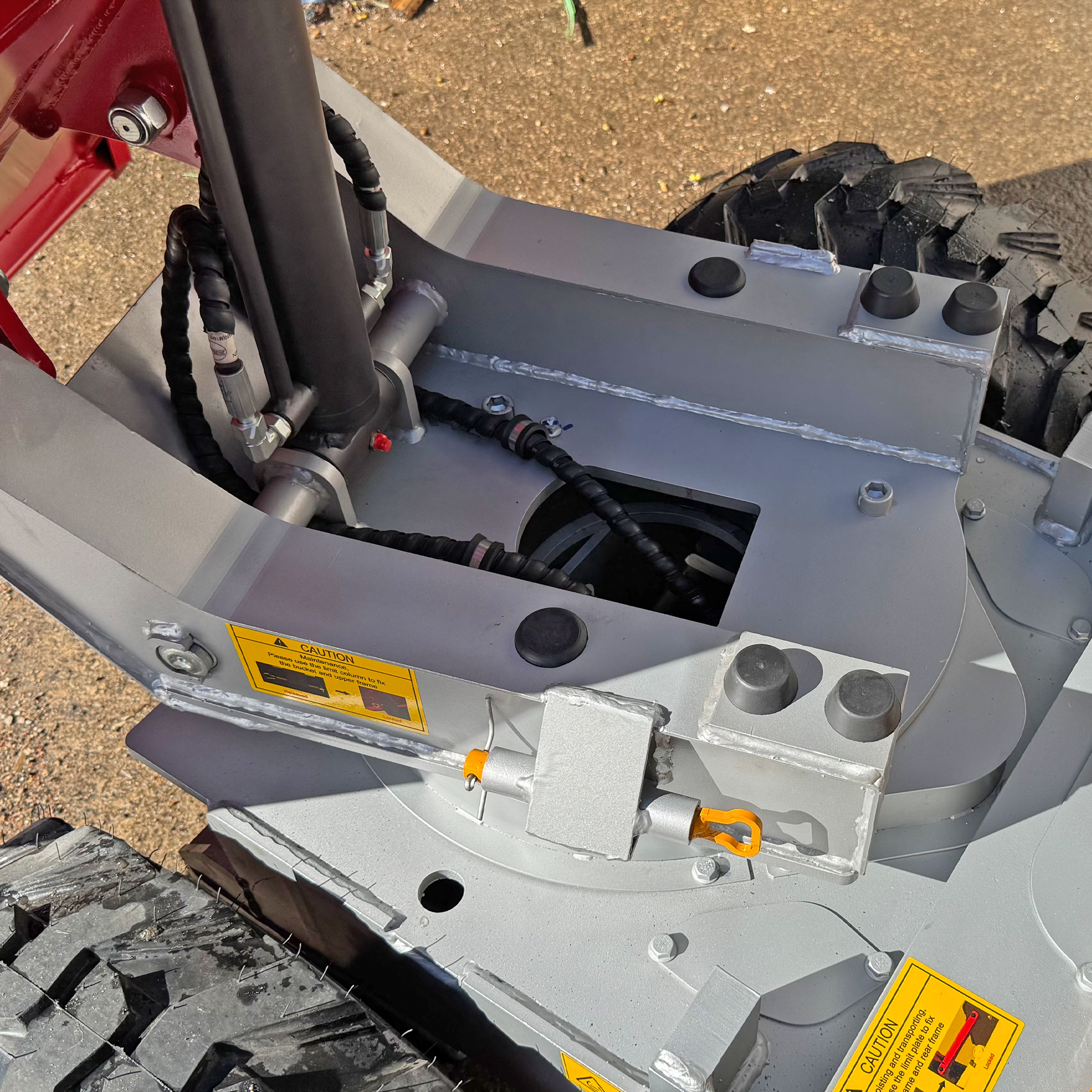

At the heart of its performance is the 0.5 m³ (17.6 in³) tipping bucket, equipped with a rotary self-dump mechanism. Controlled by an intuitive joystick, it ensures fast, effortless unloading for minimal downtime and maximum efficiency. From gravel and sand to rubble and debris, the CRD130-K makes material transport seamless, reliable, and remarkably efficient.
Job sites rarely offer unlimited space, which is why the Crytec CRD130-K Dumper is designed with a compact footprint that thrives in confined environments. Measuring just 113.78 inches (2,890 mm) in length and 42.91 inches (1,090 mm) in width, it slips through narrow passages and operates where larger machines can’t. Its 57.09-inch (1,450 mm) wheelbase provides excellent maneuverability, while a 5.31-inch (135 mm) ground clearance allows it to tackle uneven surfaces without sacrificing stability.

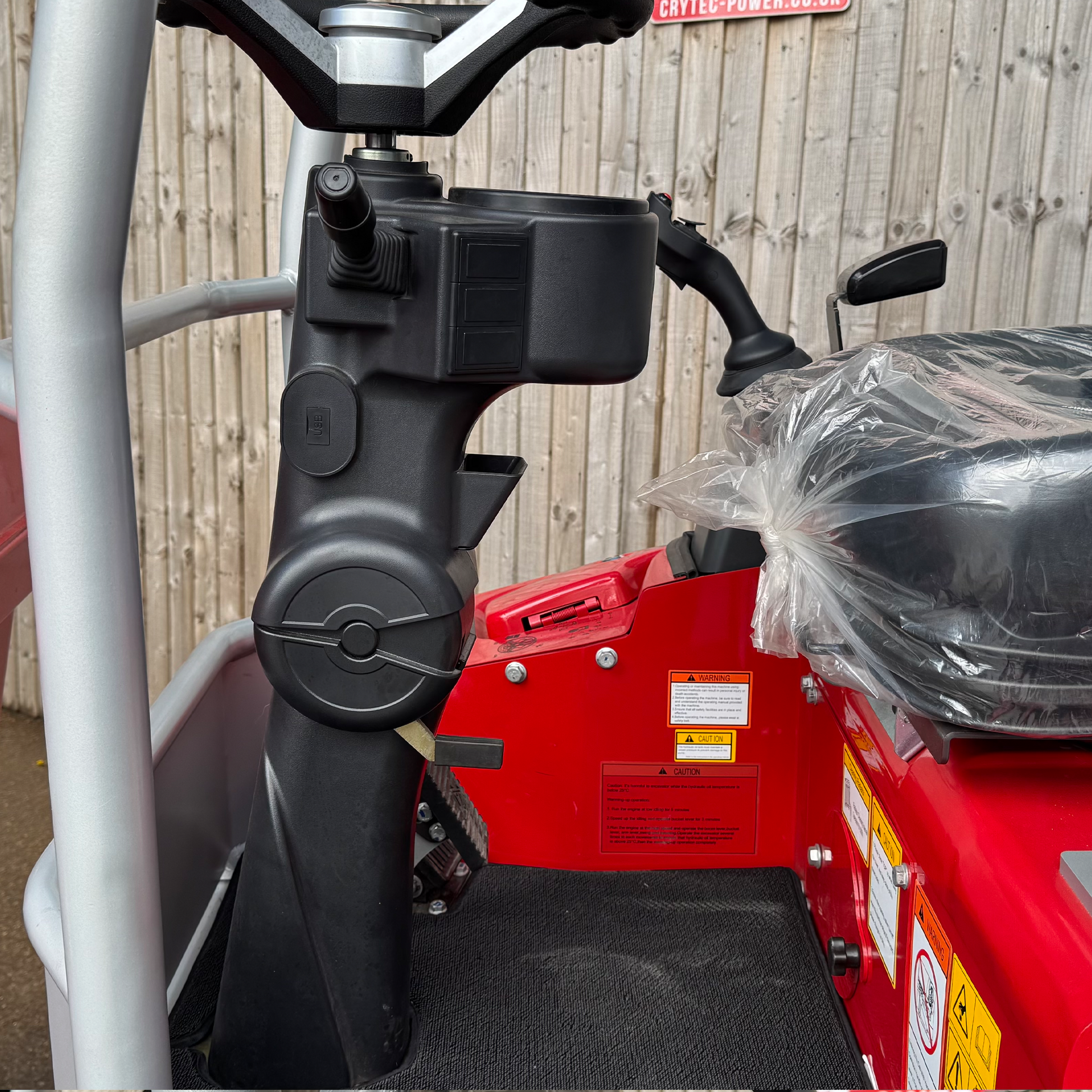

Operator comfort is built into every detail, with a steering wheel height of 94.96 inches (1,650 mm) and an overall height of 97.24 inches (2,470 mm) that ensure ergonomic control and clear visibility. Whether working in dense urban zones or rugged, remote locations, the CRD130-K delivers agility, stability, and ease of use—making it the smart solution for modern construction challenges.

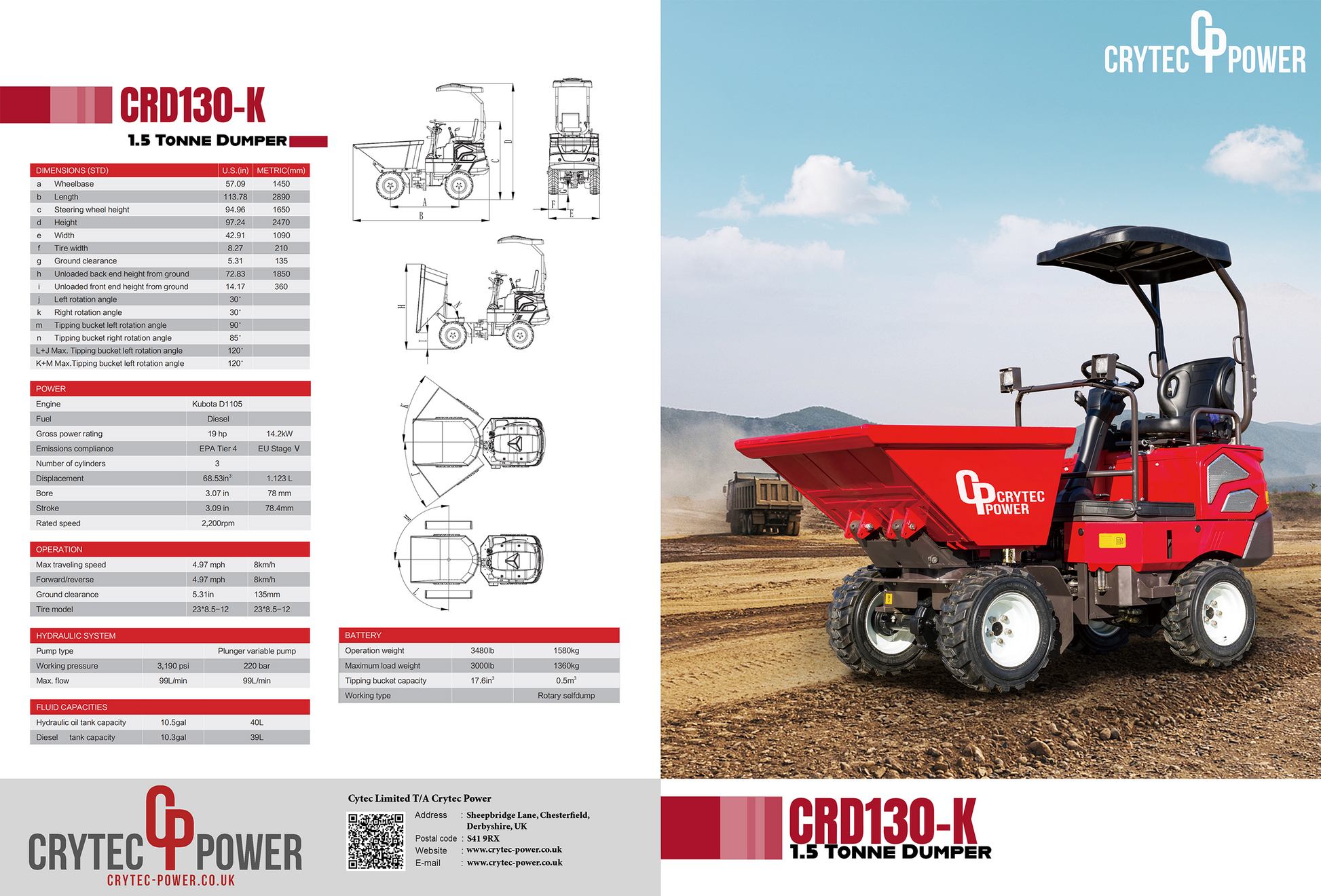

Category | Specification |
---|---|
Power | |

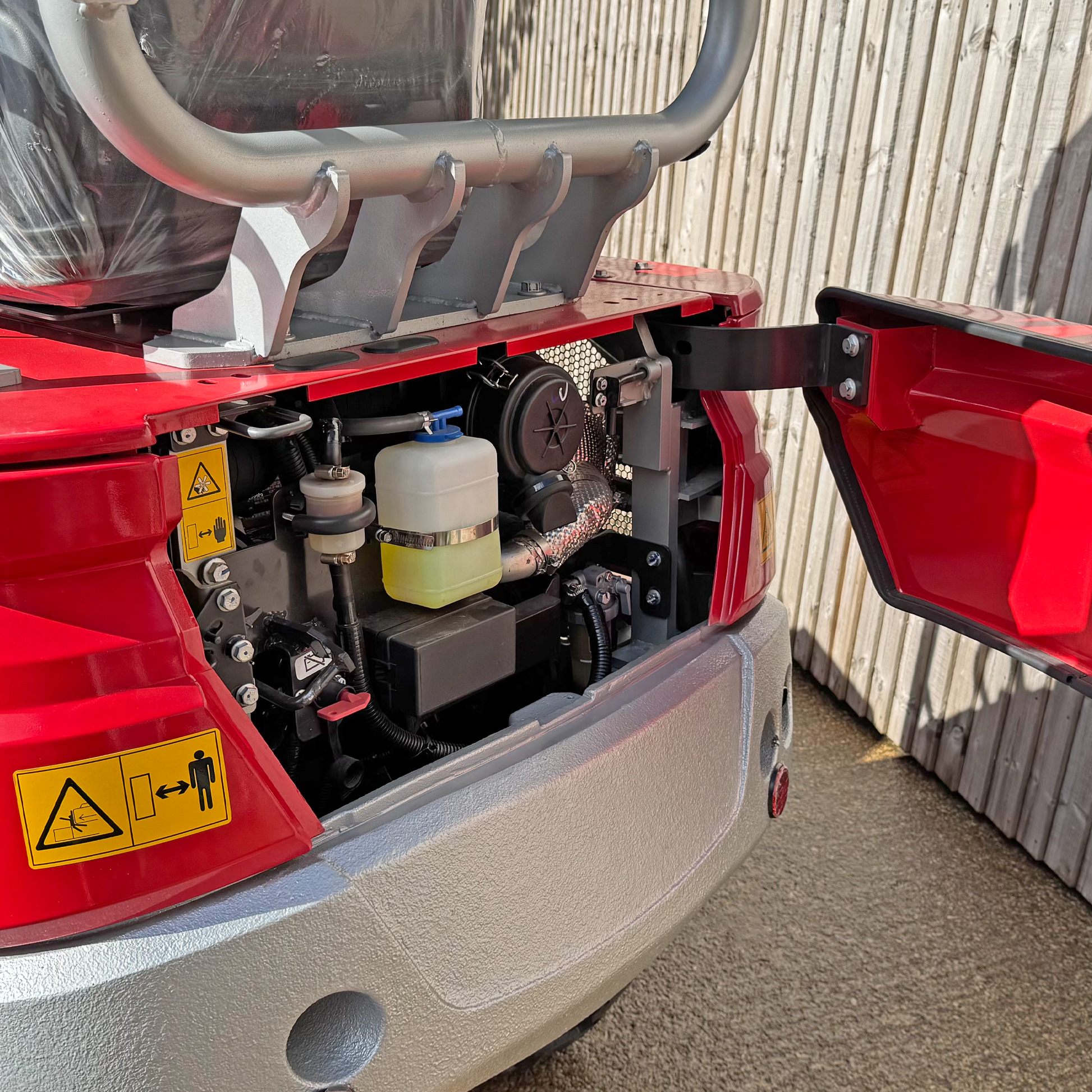

Engine | Kubota D1105 |
Fuel | Diesel |
Gross Power Rating | 19 hp (14.2 kW) |
Emissions Compliance | EPA Tier 4 / EU Stage V |
Cylinders | 3 |
Displacement | 68.53 in³ (1.123 L) |
Bore | 3.07 in (78 mm) |
Stroke | 3.09 in (78.4 mm) |
Rated Speed | 2,200 rpm |
Operation | |
Max Traveling Speed | 4.97 mph (8 km/h) |
Forward/Reverse | 4.97 mph (8 km/h) |
Ground Clearance | 5.31 in (135 mm) |

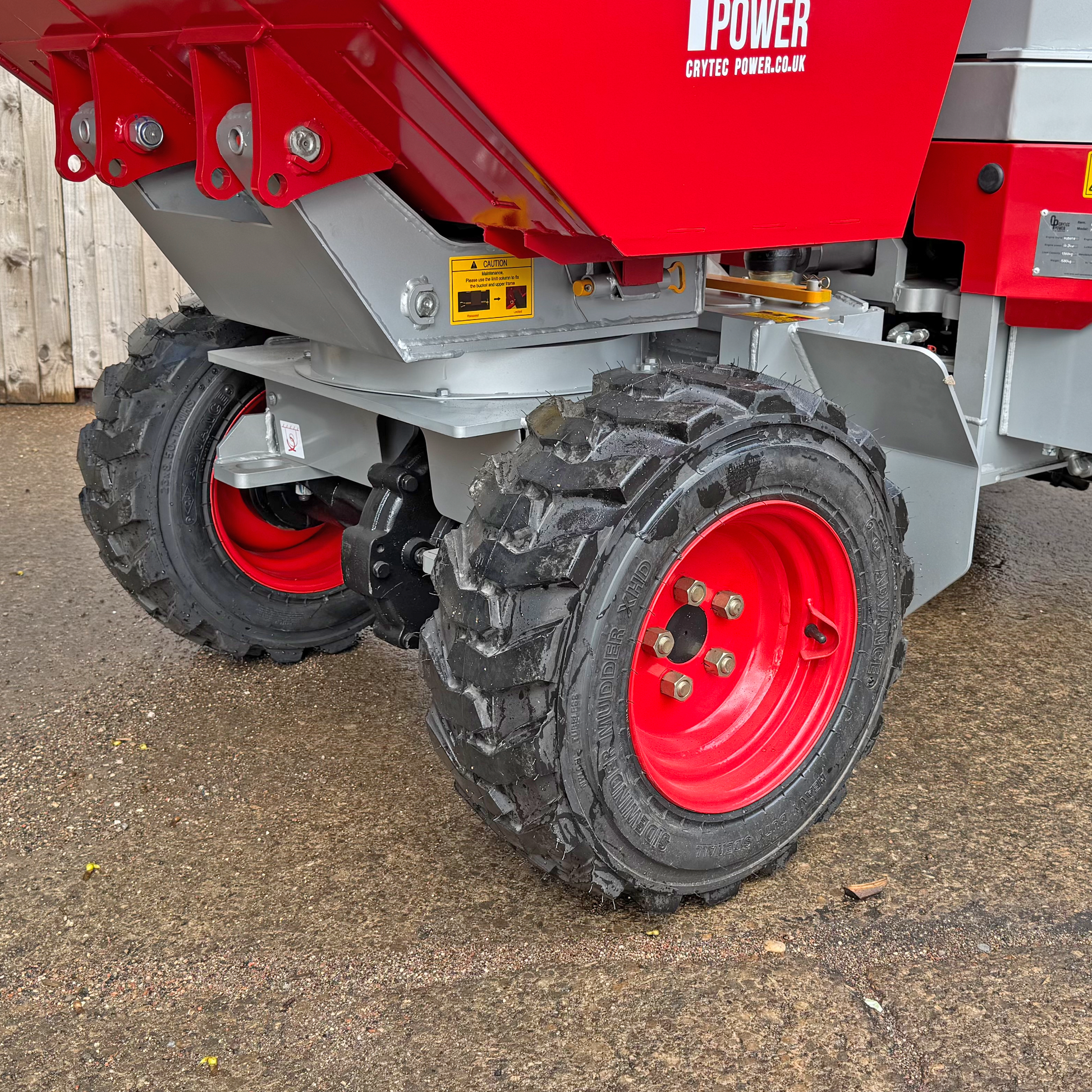

Tire Model | 23*8.5–12 |
Hydraulic System | |
Pump Type | Plunger variable pump |
Working Pressure | 3,190 psi (220 bar) |
Max Flow | 99 L/min |
Fluid Capacities | |
Hydraulic Oil Tank | 10.5 gal (40 L) |

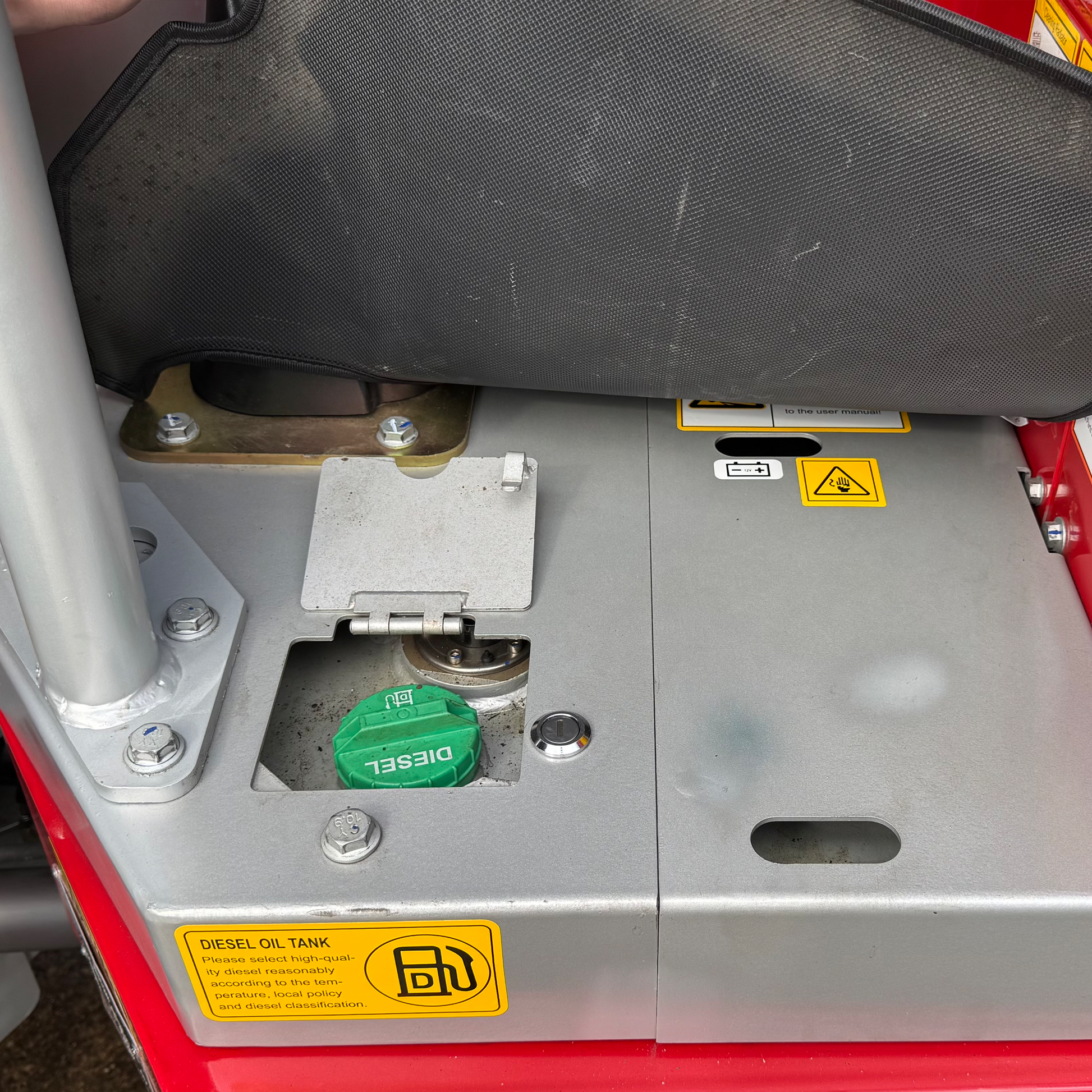

Diesel Oil Tank | 10.3 gal (39 L) |
Battery / Load | |
Operating Weight | 1,580 kg |
Max Load Capacity | 1,360 kg |
Tipping Bucket | 17.6 in³ (0.5 m³) |
Working Type | Rotary Hydrualic-dump |
