Crytec AMN30 Raptor 30 Tonne Firewood Processor
Crytec AMN30 Raptor 30 Tonne Firewood Processor
Couldn't load pickup availability
Warranty
Warranty
Unless Stated otherwise.
The warranty on our machines is 2 years for domestic purchases and 1 year for commercial purchases.
Replacement parts (unless wearing ie. blades, belts) are covered for 1 year.
DELIVERY IS NOT INCLUDED ON THIS ITEM - WE CAN PROVIDE SHIPPING QUOTES TO ANYWHERE IN THE MAINLAND UK

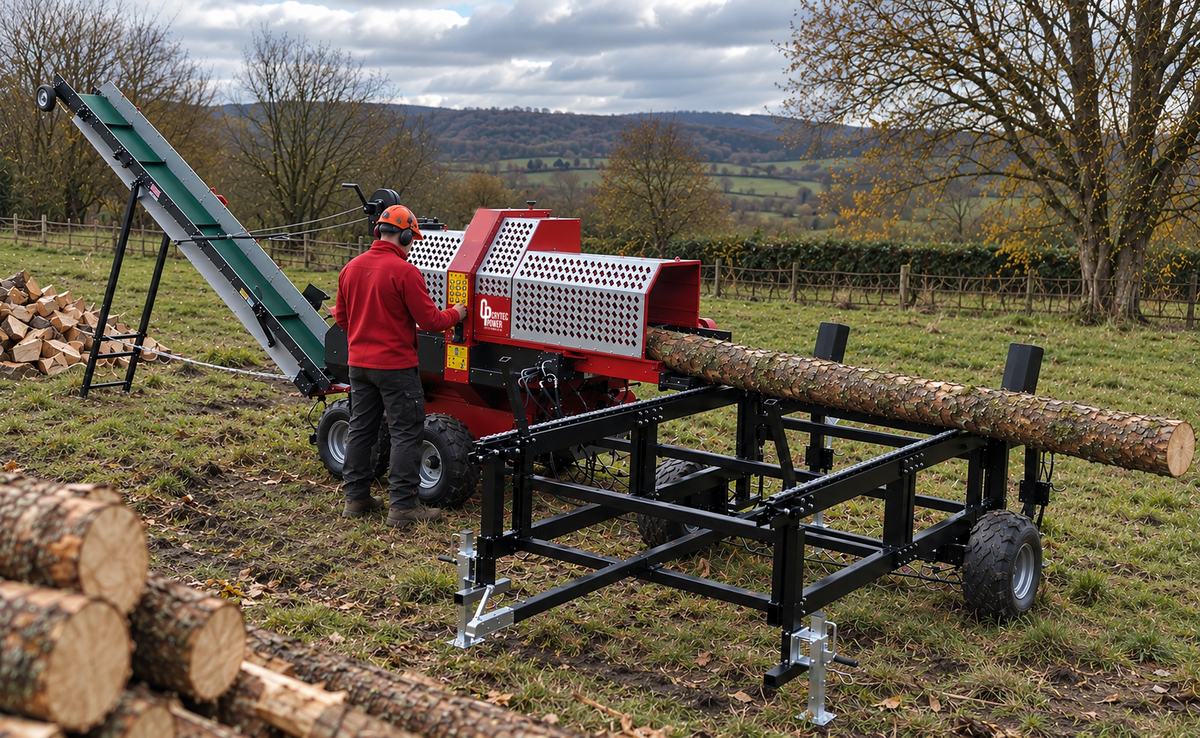

Introducing the AMN30 Raptor, a powerful 30-ton firewood processor designed to make cutting, splitting and handling timber faster and easier.
Powered by the reliable Honda GX630 petrol engine with electric start, the Raptor combines impressive splitting power with a 24-inch chainsaw bar, hydraulic log deck and convenient joystick controls.
Ideal for commercial firewood production, forestry work and anyone looking to process large volumes of timber efficiently.
Key Features
-
30 Ton Splitting Force – Powerful hydraulic system designed for demanding timber processing.
-
Honda GX630 Engine – Reliable petrol engine with convenient electric start.
-
24" Chainsaw Bar – Heavy-duty cutting capability for larger timber.
-
Hydraulic 6-Way Splitting Head – Fully adjustable to suit different log sizes.
-
Hydraulic Log Deck – Toothed feeding rollers help move logs into position with minimal manual handling.
-
Joystick Operation – Simple, convenient controls for efficient operation.
-
3.5m Output Conveyor – Easily transfers processed firewood into piles, trailers or containers.
-
50L/min Hydraulic Pump – High-flow hydraulic system for demanding workloads.
Technical Specifications
| Specification | Details |
|---|---|
| Model | AMN30 Raptor |
| Splitting Force | 30 Tonne |
| Max Splitting Diameter | 500mm / 19.6" |
| Engine | Honda GX630 Petrol |
| Starting System | Electric Start |
| Chainsaw Bar | 24" |
| Infeed Conveyor | 1800 x 390mm |
| Output Conveyor | 3500 x 300mm |
| Controls | Joystick |
| Log Deck | Hydraulic Feed with Toothed Rollers |
| Hydraulic Pump Flow | 50L/min |
| Hydraulic Tank Capacity | 40 Litres |
| Splitting Head | Hydraulically Adjustable 6-Way |
| Drawbar | 50mm Ball Hitch |
| Weight (Excluding Log Deck) | 1000kg |
Â
Processor Size Fully Built Length 440cm Width 170cm Height 260cm ( With Output Conveyor Folded )
Whether you're producing firewood commercially or processing timber on your own land, the AMN30 Raptor delivers the power, control and efficiency needed to get the job done.
With its powerful Honda engine, hydraulic feeding system and adjustable 6-way splitting head, the Raptor helps reduce manual handling and increase productivity.
