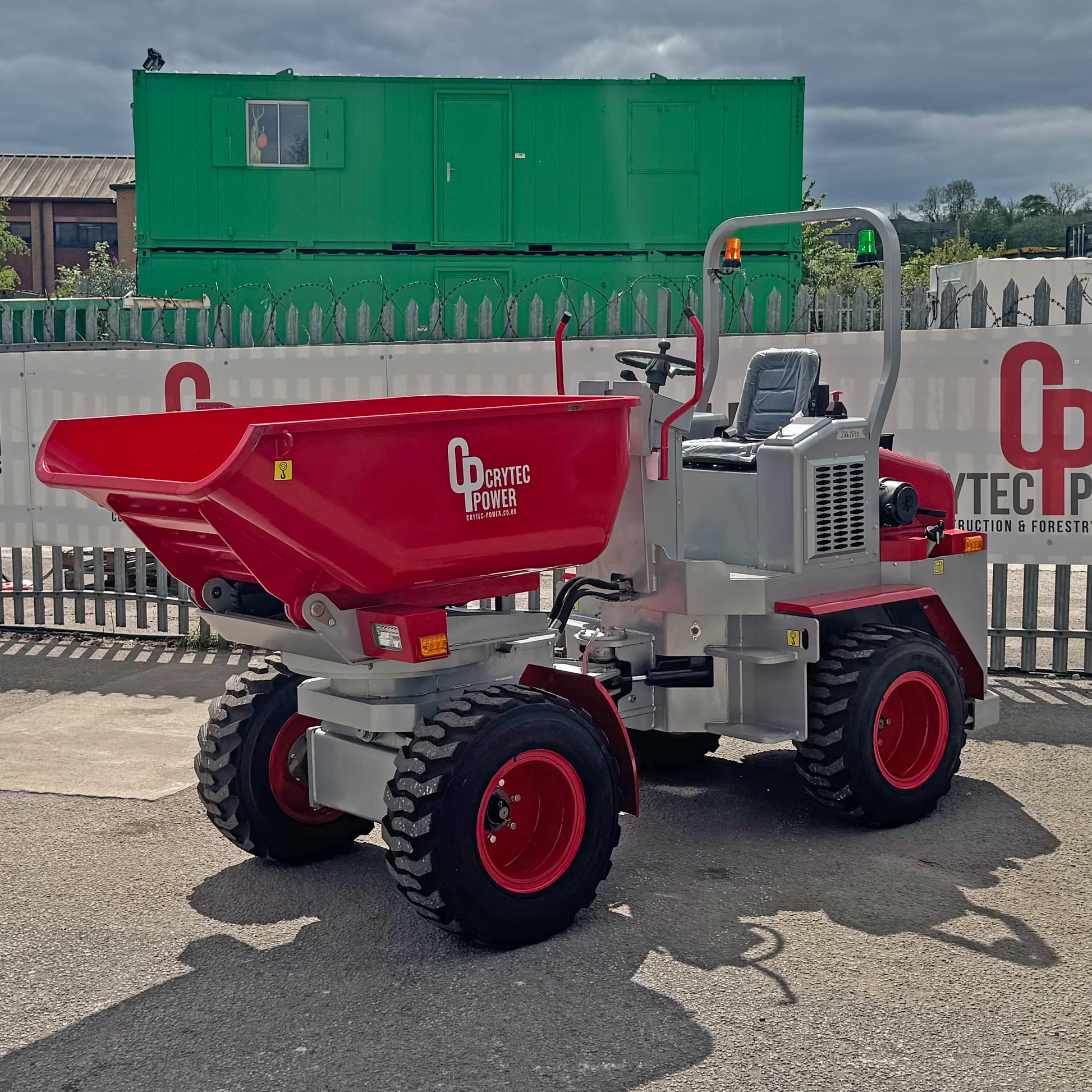

Crytec | 3 Tonne | Swivel Tip Site Dumper | Kubota Engine | CRD300-K

Designed for demanding job sites and confined working environments, this heavy-duty tracked dumper delivers reliable performance, excellent maneuverability, and efficient material handling. Built with a robust diesel engine and advanced hydraulic systems, it is ideal for construction, landscaping, agriculture, and industrial applications.

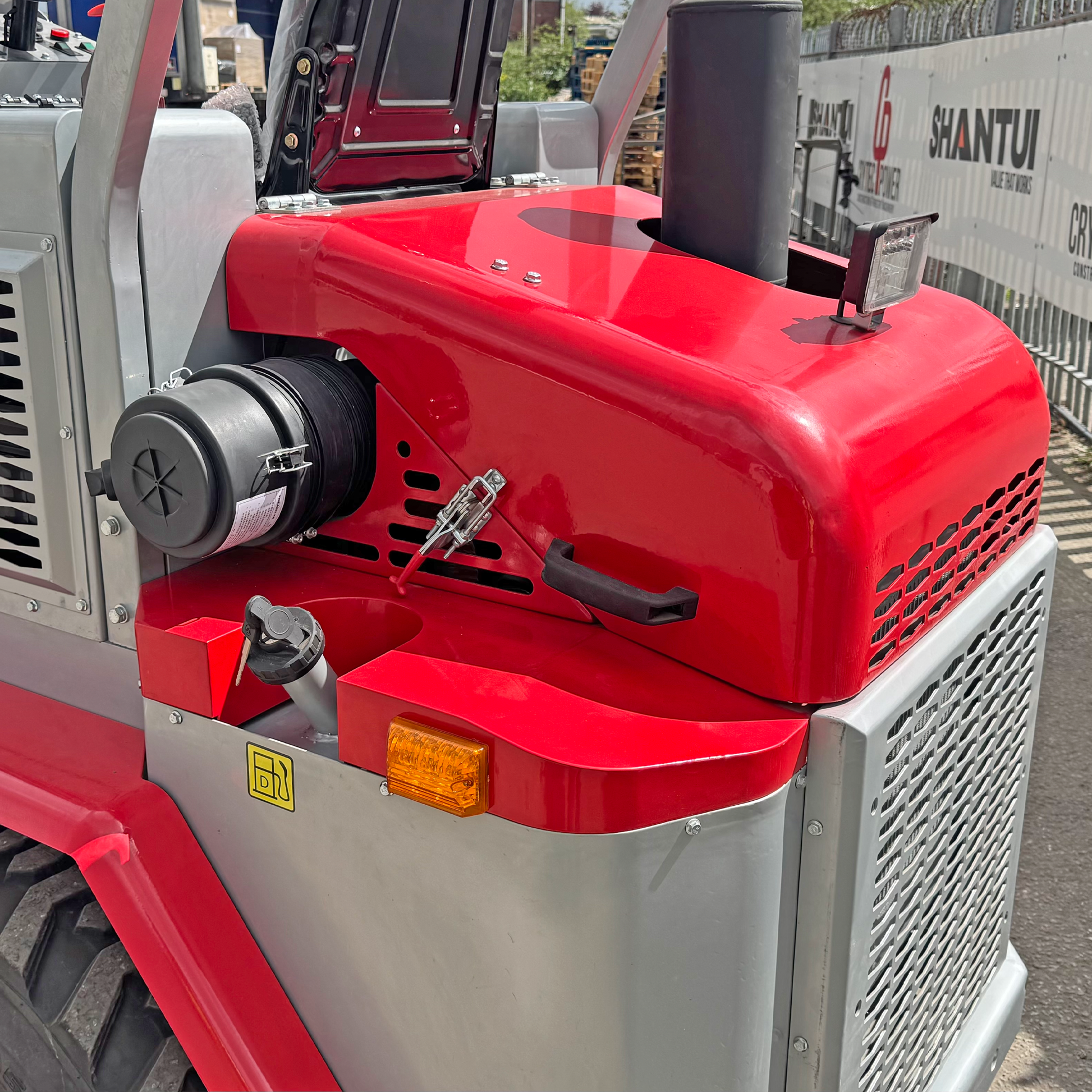

Powerful & Efficient Engine

Equipped with a high-performance, water-cooled diesel engine, this machine provides dependable power output of up to 25HP at 2800rpm. Its fuel-efficient design, combined with a 35L fuel tank, ensures extended operation with minimal downtime.

Strong Load Capacity & Durable Build

With an operating weight of approximately 2500 kg and a maximum load capacity of 3200 kg, this dumper is engineered for heavy-duty tasks. Its solid construction and optimized weight distribution provide excellent stability, even under full load conditions.

Compact Dimensions & Maneuverability

The compact design allows easy operation in tight or restricted spaces. A turning radius of 5000 mm and a wheelbase of 1930 mm ensure smooth handling and precise control on various terrains.

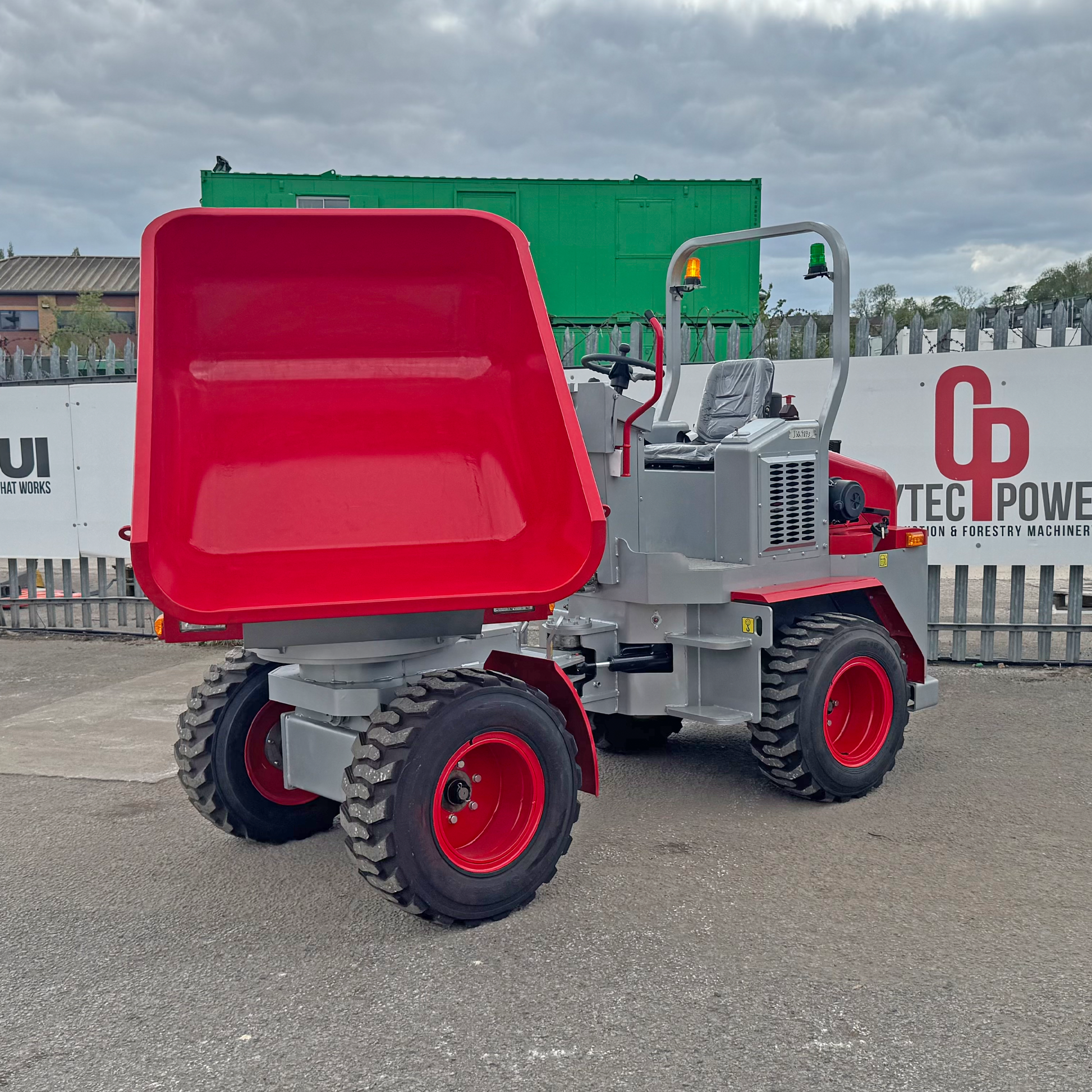

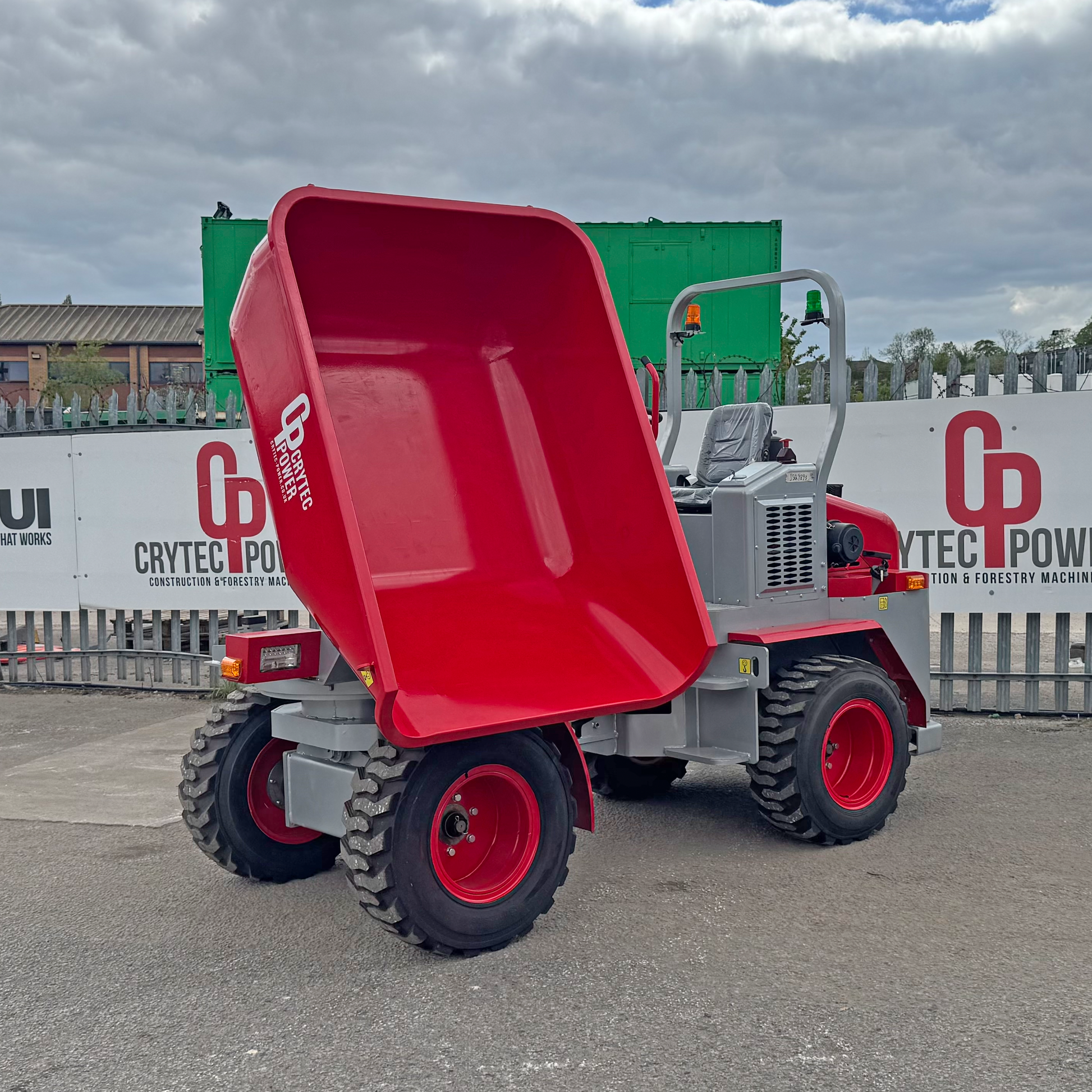

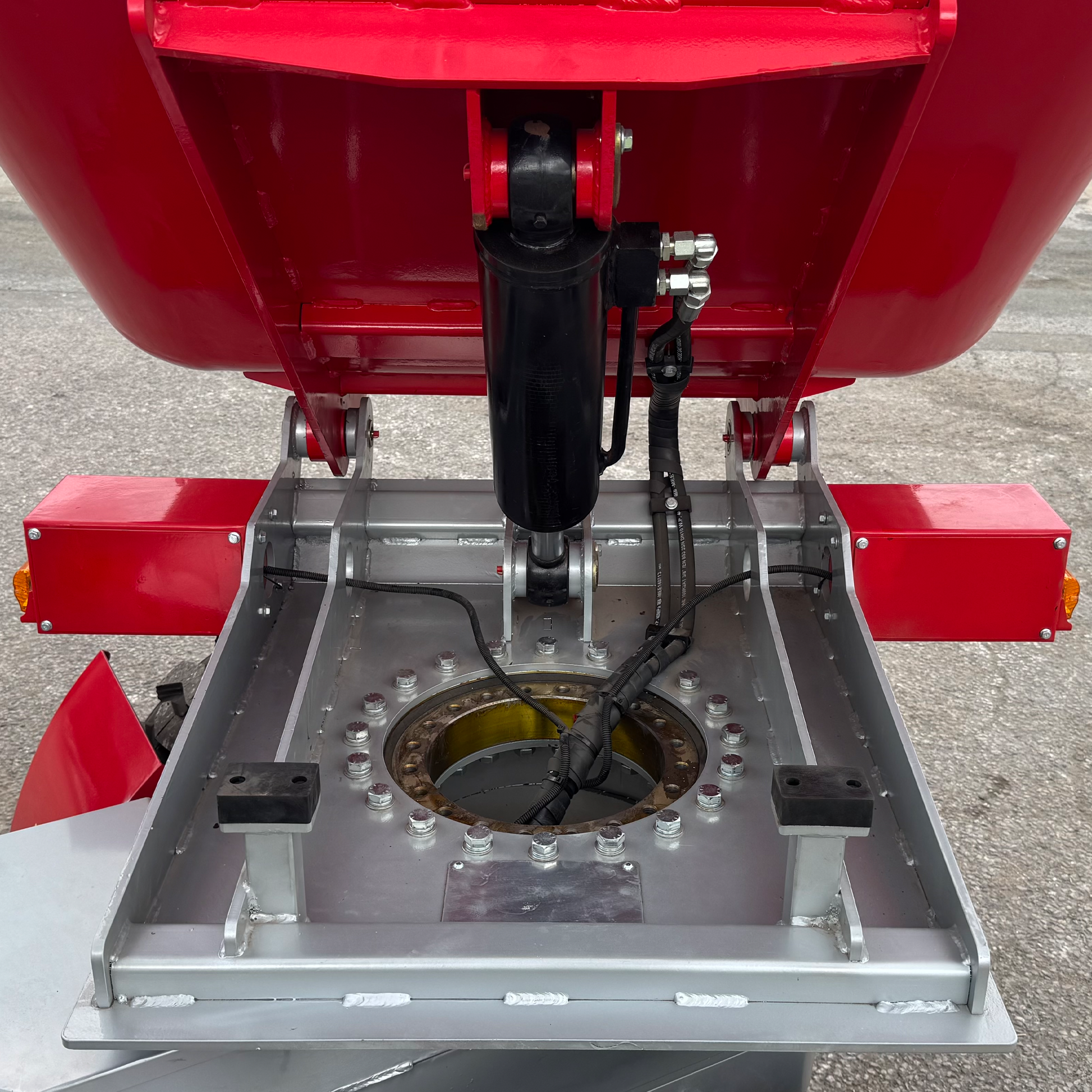

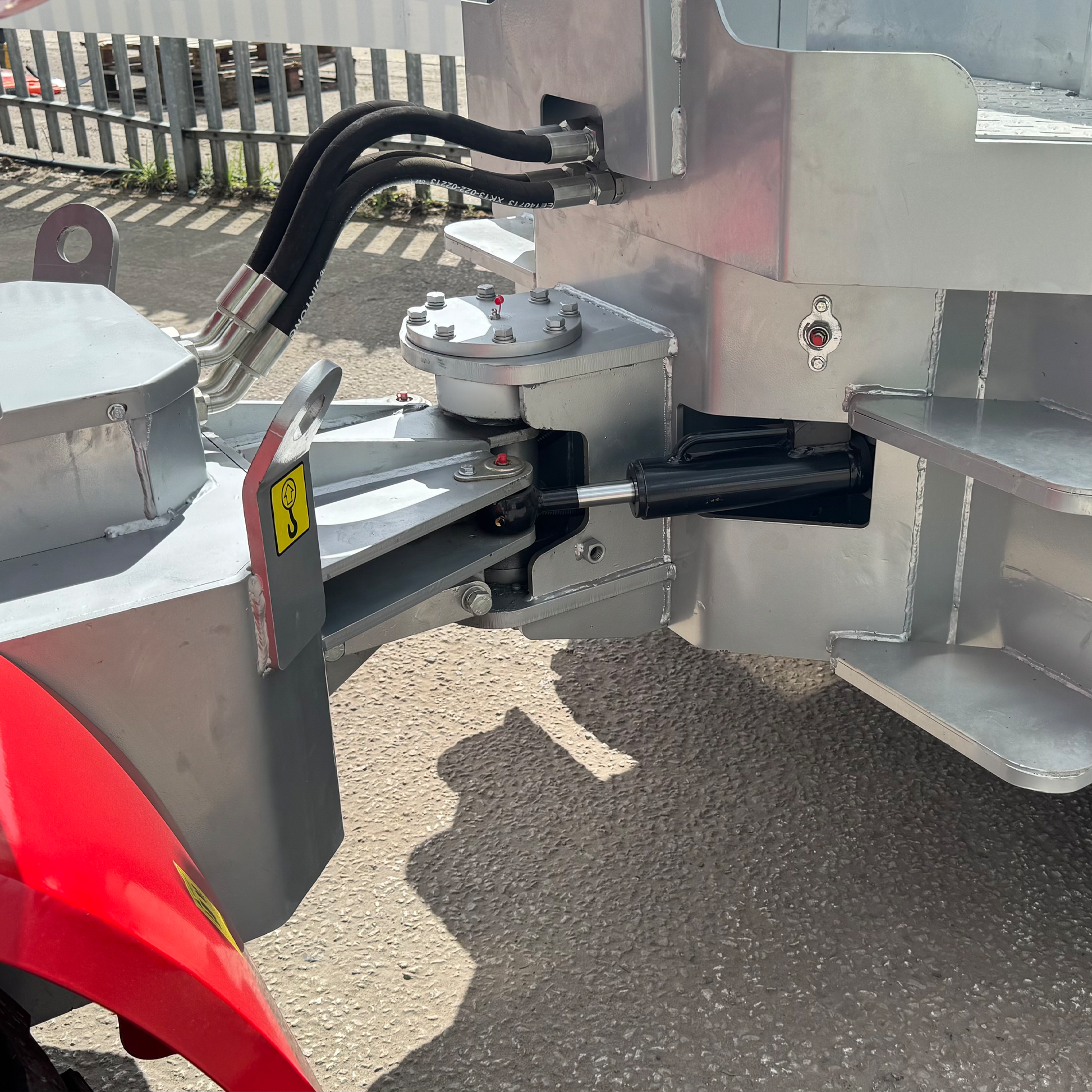

Advanced Hydraulic Tipping System

The hydraulic tipping system enables efficient and controlled unloading:

• Cargo capacity: 1.3 m³
• Tilting angle: 90°
• Container rotation: 180°
• Unloading height: 750 mm

This flexibility allows for fast and precise material placement, improving productivity on site.

Excellent Off-Road Capability

Built for challenging environments, the dumper features:

• Ground clearance: 290 mm
• Climbing ability: 30°
• Travel speed: up to 12 km/h

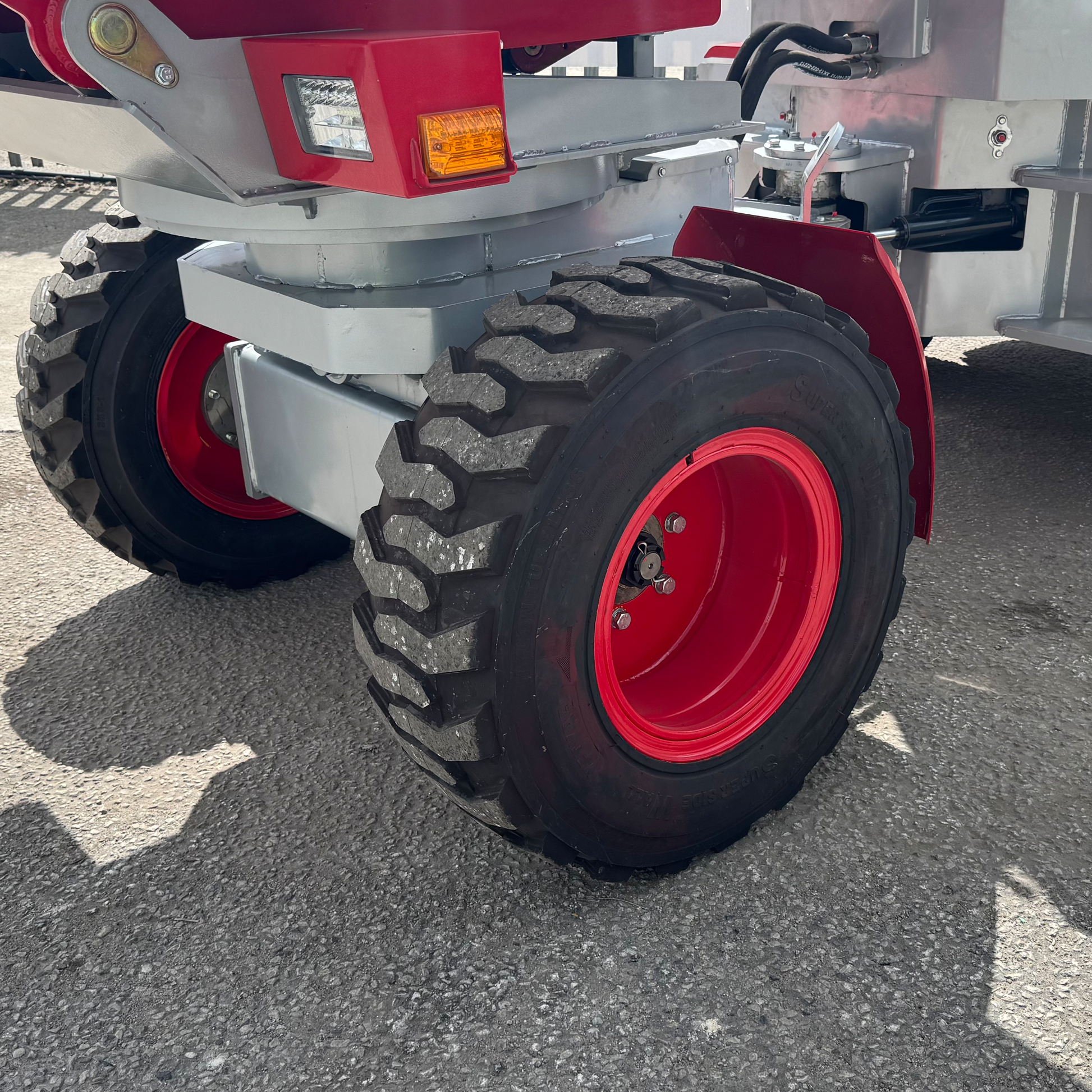

• Heavy-duty tires: 12–16.5

These features ensure reliable performance across uneven, muddy, or sloped terrain.

Optimized Safety & Stability

With an overturning distance of 610 mm and a wide overall width of 1500 mm, the machine offers enhanced stability during operation, even when transporting heavy loads.

Reliable Hydraulic System

The machine uses high-quality anti-wear hydraulic oil and features a 35L hydraulic oil tank, ensuring smooth, consistent operation and long-term durability of hydraulic components.
